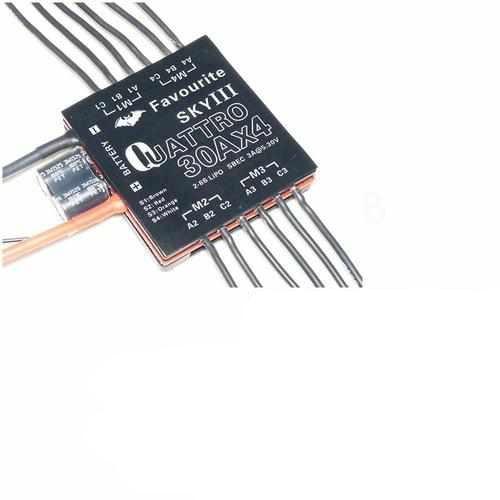

FVT SKY Esc 4 in 1 6A 12A 20A 30A Quattro 20A 4 UBEC Brushless ESC

30A 4 in 1 ESC:

input Voltage:2-6S Lipo

Continue Current 30A,Burst Current 35A up to 10S

SBEC output 5V/3A

Weight:110g

5:Size 60*55*12MM

MOS select IR,N MOS,switch speed very fast

Four ESC combine same PCB,Install security

BLHeli firmware

20A 4 in 1 ESC:

input Voltage:2-6S Lipo

Continue Current 20A,Burst Current 30A up to 10S

SBEC output 5V/3A

Weight: 110g

Size 60*55*12mm

MOS select IR,N MOS,switch speed very fast

Four ESC combine same PCB,Install security

BLHeli firmware

12A 4 in 1 ESC:

Input voltage: 2-4S Lipo

Output: Continuous Current 12a, burst 18a up to 10 seconds

SBEC: 5V/1A

Size: 50*45*12mm

Weight: 30g

Firmware:Blheli，connect to Usblink of FVT to modify parameter and update firmware

6A 4 in 1 ESC:

input Voltage:2-3SLipo

continue current :6A,Burst current:10A up to 10S

BEC output:5V/1A

Weight:16g

Size:35*28*3.5mm

Firmware:Blheli，connect to Usblink of FVT to modify parameter and update firmware

Package Contents:

1 x esc
