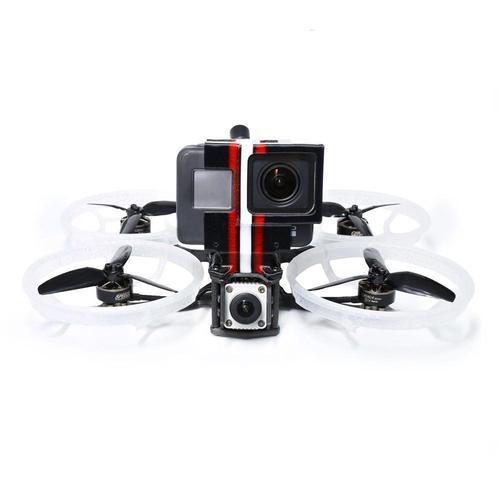

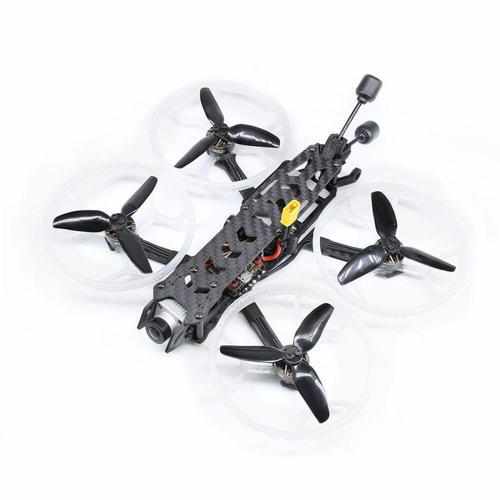

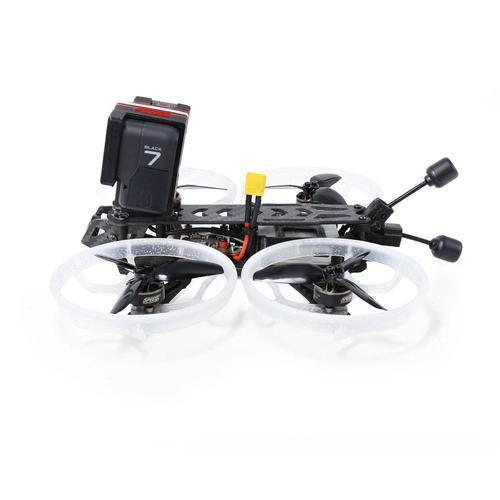

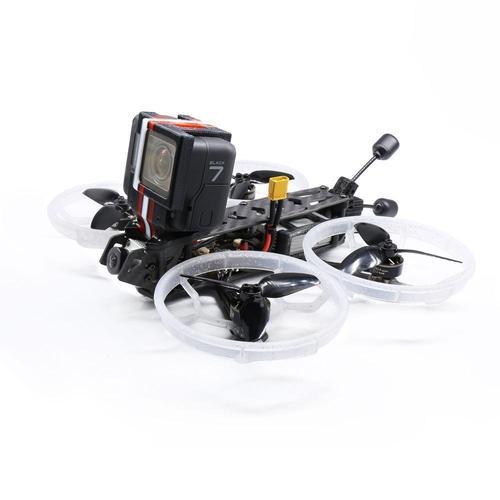

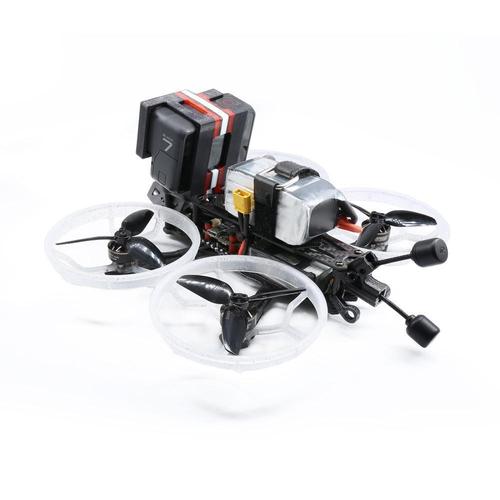

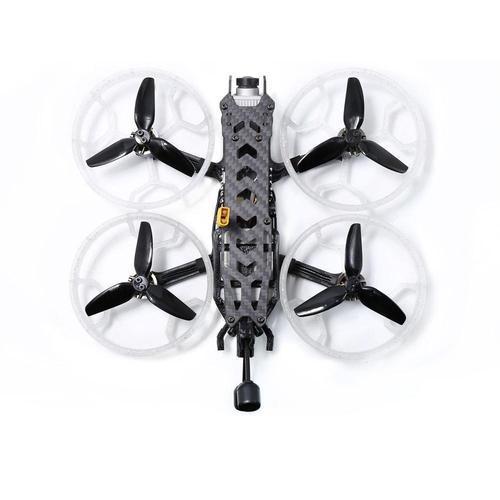

GEPRC CineRun HD3 FPV Racing Drone BNF for DJI 3850KV Motor

Specifications:

Frame

Full 3K Carbon Fiber

Side plate : 1.5mm

Top plate : 2mm

Bottom plate : 3mm

Side plate : 2mm

Wheelbase : 155mm

Motors: GR1404 3850KV

Recommended Battery: 4S 850mAh (No inclued)

Recommended Camera: for GoPro Hero 7/8(No inclued)

FPV SYSTEM : DJI FPV Air Unit

Operating Frequency: 5.725-5.850 GHz

Transmitter Power (EIRP): FCC/SRRC: <30 dBm; CE: <14 dBm

Min. Latency (end-to-end)

Low Latency Mode (720p/120fps): <28 ms

High-Quality Mode (720p/60fps): <40 ms

Max. Transmission Distance: FCC/SRRC: <4 km; CE: <0.7 km

Video Format: MP4 (Video format: H.264; Audio format: ACC-LC)

I/O Interface: USB-C, MMCX, 3-in-1 port, microSD card slot

Operating Temperature Range: 32° to 104°F (0° to 40°C)

Input Power: 7.4-17.6 V, about 4-9 W

Sensor: 1/3.2" CMOS; Effective Pixels: 4 M

Lens: 2.1 mm, f/2.1

Shutter: Rolling shutter

ISO: 100-25600

FOV: 150°(D); 122°(H); 93°(V)

Dimension: 22.1 × 21.1 × 20.1 mm

STABLE PRO F7 Flight Controller

Model:STABLE PRO F7 35A

MCU: STM32F722RET6

IMU: 2x ICM20689(SPI)

BlackBox: 32Mb onboard Flash

OSD: BetaFlight OSD w/ AT7456E chip

Baro:NO

BEC Output: 5V@3A

Integrated LC Filter

Input Voltage: 2-6S Lipo

Firmware target: EXF722DUAL

Size: 26x26mm board, 20mm mounting holes (M2)

STABLE PRO F7 ESC BL32 2-6S 4in1

MCU:STM32F051

Constant:35Amps

Burst:45Amps

Dimensions:31*31mm(including the power pads)

Mounting Holes:20*20mm,M2

Supports Dshot1200,Proshot,Oneshot,Multishot

Current meter: Yes

Target: GEPRC-BL32-4IN1

Features:

No Propellers in the view.

Perfect for DJI FPV HD(720p 120fps FPV)

Equipped with a 3-inch guard frame, Ensure safety and reliability

Full 3K Carbon Fiber

System:STABLE PRO F7 35A

Black Box: 32Mb onboard flash memory.

Full Soft Mounted FC System: Provides a clean operating environment for gyro.

Exquisite Assembly Process: Eliminate any potential installation problems.

Weight:203g(without battery and for GoPro Mounts TPU)

Include:

1 x CineRun HD3 FPV Racing Drone

1 x Mounts TPU for GoPro 7

4 x 3inch Props(pairs)
