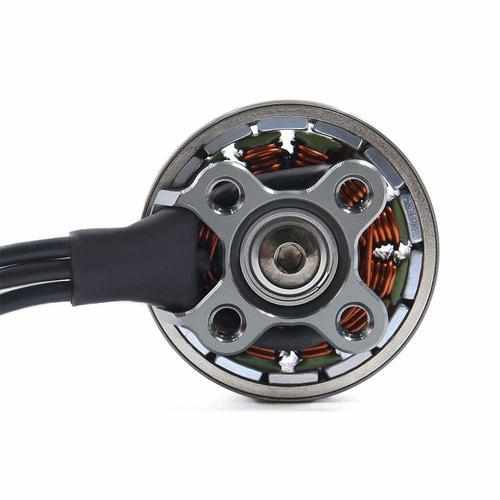

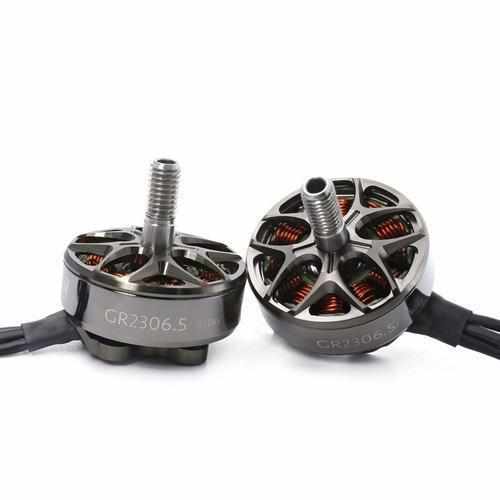

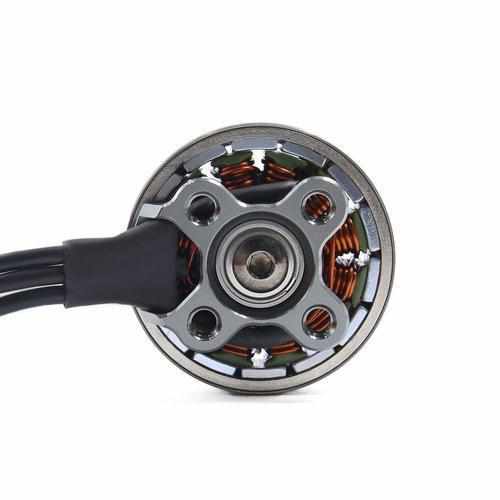

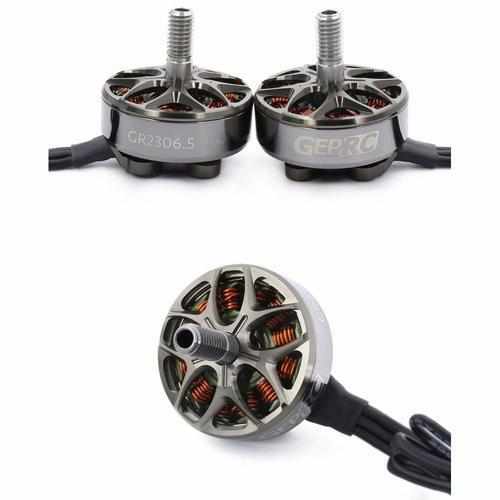

GEPRC Gepu GR2306.5 Brushless Motor

Specification:

Brand Name: Geprc

Model: GR2306.5

Item Name: 2306.5 1350KV 1850KV 6S 2450KV 4S Brushless Motor

KV: 1350KV / 1850KV / 2450KV (Optional)

Input Voltage: 5-6S@1350KV & 1850KV ; 4-5S@2450KV

Quantity: One PC

Version: CW Screw Thread

Configuration: 12N14P

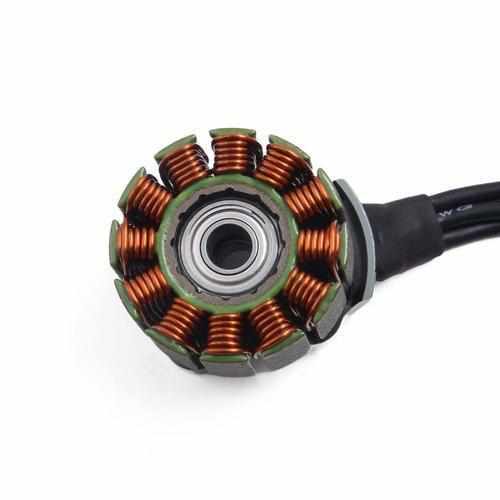

Stator Diamter: 23mm

Stator Length: 6.5mm

Shaft Diameter: 4mm

Motor (Dimension: Φ28.2*29.2mm (Dia.*Len))

Idle current(10)@10V: 1.95A

Max Continuous (Power (15S): 1000W

Internal Resistance:38mΩ

Max Current(15S): 49A

Effciency Current:(3-7A)>85%

Rotor: N52H arc magnets

Bearings:JAPAN ISC

Base casing: Al 7075

Wire AWG: 20AWG

Weight(g):31g (not include wire)

Pacakge Included:

1x GEPRC GR2306.5 Motor

1x GEPRC M5 Aluminum Lock Nut

4x M3x7 Button head screws

4x M3x8 Button head screws
