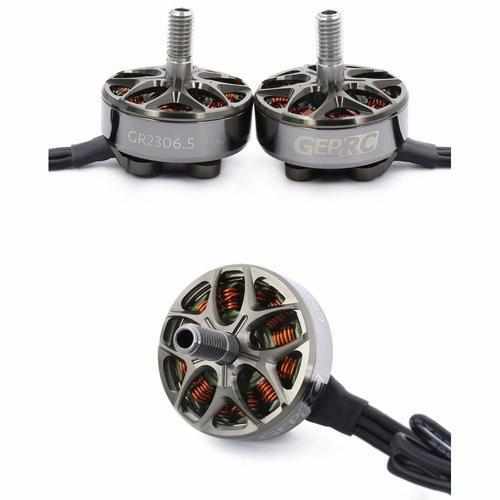

GEPRC GR2306.5 2306 1350KV/1850KV/2450KV 4-6S Brushless Motor

Specifications:

Item name:GR2306.5 Motors

KV:1350KV / 1850KV / 2450KV (Optional)

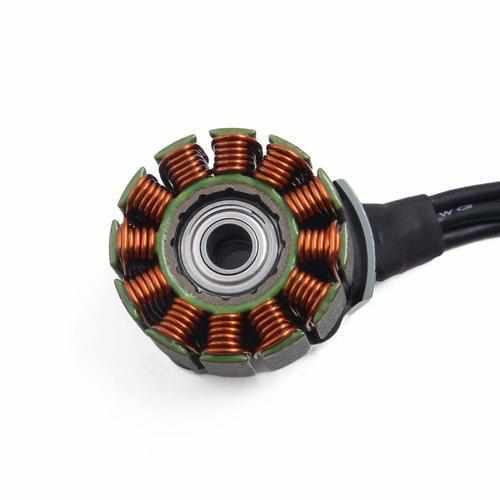

Configuration:12N14P

Stator Diamter:23mm

Stator Length:6.5mm

Shaft Diameter:4mm(Hollow)

Motor (Dimension(Dia.*Len)): Φ28.2*29.2mm

Idle current(10)@10V(A):1.95

of Cells(Lipo):4~5S

Max Continuous (Power(W)15S):1000

Internal Resistance:38mΩ

Max Current(15S):49A

Effciency Current:(3-7A)>85%

Rotor: N52H arc magnets

Bearings:JAPAN ISC

Base casing: Al 7075

Wire AWG: 20AWG

Weight(g):31g (not include wire)

Package included:

1x GEPRC GR2306.5 Motor

1x GEPRC M5 Aluminum Lock Nut

4x M3x7 Button head screws

4x M3x8 Button head screws
