GPS Module 7M with Compass for Flight Controller

7M GPS Module for MWC/APM

These are Pre-configured, Flashed with the correct settings, and tested. To make them Plug and Play. This is NOT normally done in any other store!

Super Bright LED

BlackPlane with Standard Mk style mounting holes 45mm X 45mm

Blox Neo 6M Chipset

38400 bps (Default) Changed to 115200bps !

Output GGA, GSA and RMC frames

1Hz (Default) Changed to 5Hz!

Permanent Configuration Retention

Cable included

+ Moved LED to the Top

+ Bigger battery

+ compass on board

+ 6 pin connector for EZ connect to MEGA BLACK

+ 4 pin connector for onlyGPS use

+ 4 pin connecton for compass only use

+ GPS "PCB HOOD" for More EMI/RFI Shielding

can use both 4 pin at once

The GPS unit is per-configured for multiwii !! Unlike other shops send it out default settings, and yet you figure it out.

pre tested = PLUG AND PLUG for MWC 2.1!

MultiWii GPS assited Position Hold and RTH functions

7M GPS Module with on-board compass HMC5883 (compass) (mag)

- Main chip:U6M

- C/A code,1.023MHz

- Receiver Frequency:L1 [1575.42MHz]

- Locate performance

- 2D :3m(Average)

- 2D:2m(average),with WAAS

- drifting<0.02m/s

- accuracy:1us

- coordinate system:WGS-84

- max attitude height:18000

- Max speed:515m/s

- accerlaration:<4g

Specification:

- tracking sensitivity:-161dBm

- Capture sensitivity:-148dBm

- cold start time:38s average

- Warm start time:35s average

- hot start time:1s average

- Capture time:0.1s Average

- Temperature:40 to +80

- wide power supply voltage:+3.5V~+5.5V

Module V2.0

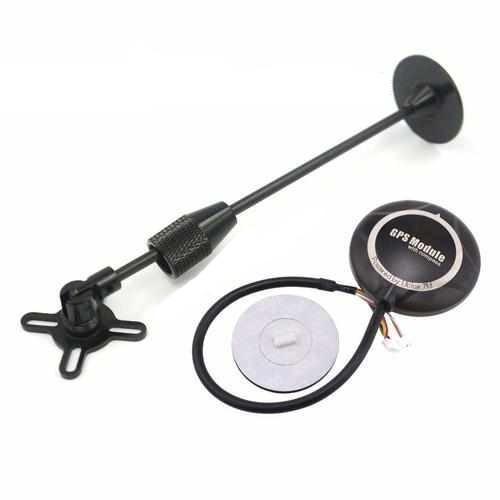

Package including:

7M GPS with Compass and Shell x1

Gps holder x1
