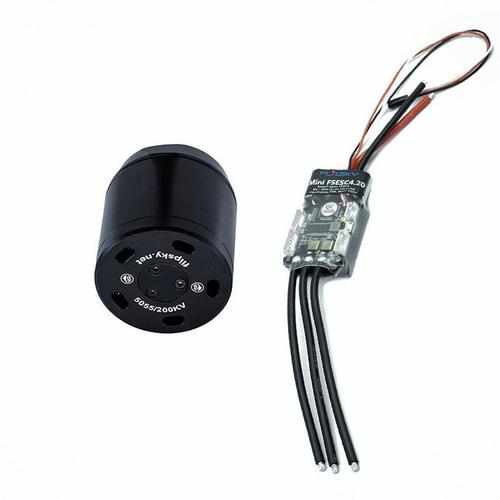

H5055 200KV sensored and sensorless motor with Super ESC 4.20 based on

H5055 200KV sensored and sensorless motor with Super ESC 4.20 based on VESC 4.12 controller Motors Drones Xpress
H5055 200KV sensored and sensorless motor with Super ESC 4.20 based on VESC 4.12 controller Motors Drones Xpress

H5055 200KV sensored and sensorless motor with Super ESC 4.20 based on VESC 4.12 controller

$901.00

Specs of 5055 BLDC Motor: Max Power: 1380W Max Current: 39A Max Volts: 12S Max Torque:1.1N.m Recommend ESC: 3-12S 50A (FSESC4.12 50A or FSESC 6.6 60A) Weight: 1.05 lb / 0.475 kg The motor length:55.5mm The motor diameter: 49.5mm SHAFT:...

  • Availability: In Stock

Specs of 5055 BLDC Motor:

Max Power: 1380W

Max Current: 39A

Max Volts: 12S

Max Torque:1.1N.m

Recommend ESC: 3-12S 50A (FSESC4.12 50A or FSESC 6.6 60A)

Weight: 1.05 lb / 0.475 kg

The motor length:55.5mm

The motor diameter: 49.5mm

SHAFT: Diameter 8mm, 25mm length

Motor Wire: 300mm silicone 16AWG wire with MT30 male connector.

Wire configuration:

Blue = U

White = V

Yellow = W

BLDC Motor

The number of pole: 14
