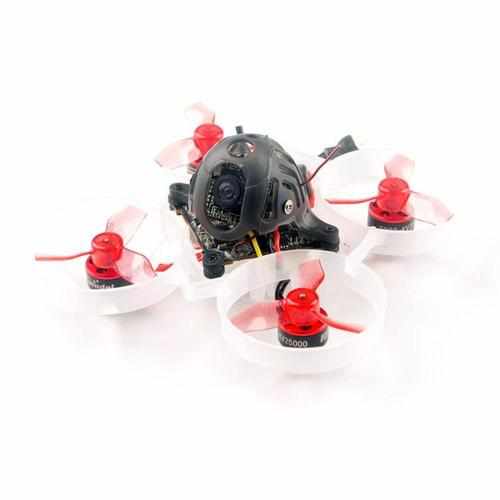

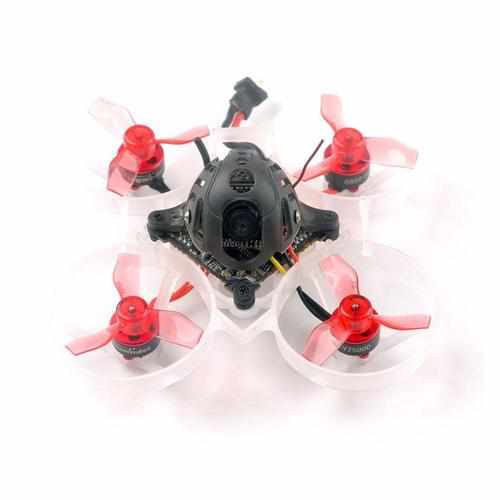

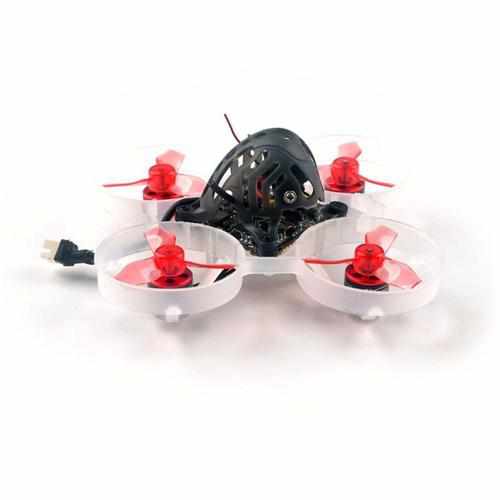

Happymodel 65mm Crazybee F4 Lite 1S Brushless Whoop FPV Racing Drone B

Specification:

Brand Name: Happymodel

Model: Mobula6

Item Name: 65mm Crazybee F4 Lite 1S Brushless Whoop FPV Racing Drone BNF

Optional Version: Frsky Receiver ( Compatible with ACCST D8/D16, Recommend D8 mode)

Drone Wheelbase: 65mm

Size: 80x80x37mm

Weight: 20g

Crazybee F4 LiteFlight Controller
Built-in ESC & Receiver & VTX

Frsky SPI RX version) CRAZYBEE F4 Lite Frsky version Firmware target: CrazybeeF4FR

(Flysky SPI RX version) CRAZYBEE F4 Lite Flysky version Firmware target: CrazybeeF4FS

MCU:STM32F411CEU6 (100MHZ, 512K FLASH)

Sensor: MPU-6000(SPI connection)

Board size: 28.5 * 28.5MM

Power supply: 1S battery input (DC 2.9V-4.35V)

Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready

Built-in Betaflight OSD(SPI Control)

Built-in 5.8G VTX

Built-in SPI Frsky/Flysky receiver

Built-in 5V 1A BEC

Built-in voltage detection

Onboard Frsky Receiver Version

SPI BUS receiver Frsky D8 compatible

Compatible Non EU transmitter D8 model
- Frsky_x_lbt Support EU LBT Radio Transmitter

Channels: 8ch

Failsafe support

No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m

Onboard Flysky Receiver Version

SPI BUS receiver

Protocol: AFHDS and AFHDS-2A Switchable

Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)

No ground interference ( Transmitter and receiver 1 m from the ground): 100~200m

Failsafe support

Onboard 5A BLheli_S 4in1 ESC

MCU upgraded to EFM8BB21

Power supply: 1S LiPo/LiPo HV

Current: 5A continuous peak 6A (3 seconds)

Support BLHeliSuite programmable

Factory firmware: O_H_5_REV16_7.HEX

Default protocol: DSHOT600

SE0802 19000KV / 25000KV Motor

Model: SE0802
KV: 19000KV / 25000KV Motor

Configu-ration:9N12P

Stator Diamter:8mm

Stator Length:2mm

Shaft Diameter:Φ1mm

Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm

Weight(g):1.9g

No.of Cells(Lipo):1S only

Gemfan 1219 3-Blade Propeller

Brand Name: Gemfan

Center Thickness:5mm

Prop Disk Diameter:31mm

Center Hole Inner diameter:1.0mm
Quantity: 4 CW & 4 CCW

Weight:0.28g

Onboard 5.8G 40CH 25mW VTX

Output power: 25mw
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Race band
Smartaudio ready

Runcam Nano 3 FPV Camera

Brand Name: Runcam
Model: Nano 3
Item Name: 1/3 CMOS 800TVL Camera

Electronic Shutter Speed: Auto

Auto Gain Control (AGC): Auto

Min. Illumination: 0.01Lux@1.2F

D-WDR: Auto

Day/Night: Color

Power:DC 3-5.5V

Current: 110mA@5V 120mA@3.3V

Housing Material: ABS
FOV: 120 degree

Net Weight: 1.2g

Dimensions: L14mm*W14mm*H9mm

Lipo Battery ( Included)

Continuous Discharge Rate: 30C

Size: 57mmx12mmx7mm

Weight: 8g

Connector: PH2.0
Quantity: 4 PCS

Pacakge Included:

1x Mobula6 1S FPV Racing Drone

4x 1S 300mAh 30C Lipo Battery

1x 1S Lipo/LIHV USB Charger

1x Propeller disassemble Tool
