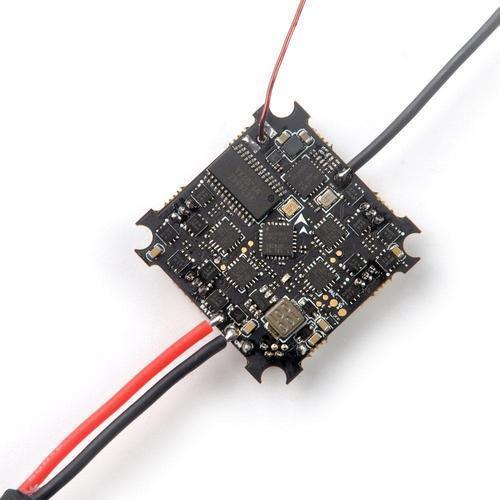

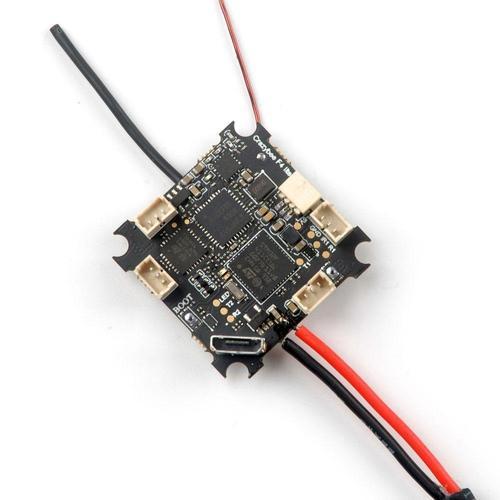

Happymodel Crazybee F4 Lite 1S Flight Controller AIO ESC Receiver / 25

Specificaiton:

Brand Name: Happymodel

Item Name: Crazybee F4 Lite 1S Flight Controller AIO ESC Receiver & 25mW VTX

Optional Version: Frsky Receiver ( Compatible with ACCST D8/D16, Recommend D8 mode)

Flysky Receiver ( Compatible with AFHDS and AFHDS-2A Flysky transmitter)

Net Weight: 4.5g

Application: Original Flight Controller Board for Mobula6 FPV Racing Drone

Crazybee F4 LiteFlight Controller
Built-in ESC & Receiver & VTX

Frsky SPI RX version) CRAZYBEE F4 Lite Frsky version Firmware target: CrazybeeF4FR

(Flysky SPI RX version) CRAZYBEE F4 Lite Flysky version Firmware target: CrazybeeF4FS

MCU:STM32F411CEU6 (100MHZ, 512K FLASH)

Sensor: MPU-6000(SPI connection)

Board size: 28.5 * 28.5MM

Power supply: 1S battery input (DC 2.9V-4.35V)

Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready

Built-in Betaflight OSD(SPI Control)

Built-in 5.8G VTX

Built-in SPI Frsky/Flysky receiver

Built-in 5V 1A BEC

Built-in voltage detection

Onboard Frsky Receiver Version

SPI BUS receiver Frsky D8 compatible

Compatible Non EU transmitter D8 model

- Frsky_x_lbt Support EU LBT Radio Transmitter

Channels: 8ch

Failsafe support

No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m

Onboard Flysky Receiver Version

SPI BUS receiver

Protocol: AFHDS and AFHDS-2A Switchable

Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)

No ground interference ( Transmitter and receiver 1 m from the ground): 100~200m

Failsafe support

Onboard 5A BLheli_S 4in1 ESC

MCU upgraded to EFM8BB21

Power supply: 1S LiPo/LiPo HV

Current: 5A continuous peak 6A (3 seconds)

Support BLHeliSuite programmable

Factory firmware: O_H_5_REV16_7.HEX

Default protocol: DSHOT600

Onboard 5.8G 40CH 25mW VTX

Output power: 25mw
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Race band

Package Included:

1x Crazybee F4 Lite Flight Controller

4x Anti-Vibration Ball

4x Screws
