Hawkeye Little Pilot 4 FPV Monitor

Descripiton:

Specially designed for RC quadcopter first person view.

Video cache: flight video cache, local playback, easy to find it after drone crash.720*288(PAL)/720*240(NTSC)

High brightness: 700 Lux.

Built-in battery: 2.5-3 hours

Dual receiver: built-in dual receivers, video without any delay.

No delay/anti blue screen/anti black screen: the system won’t cause any delay in signal receiving ; blue screen or black screen will definitely not occur.

Auto/manual channel searching: no need for DIP switch.

Equipped with mounting bracket, easy to be installed.

Super strong anti-interference design ensures the stable flying.

Specifications:

Resolution: 800x480

Backlight: LED

Brightness: 700 Lux

Display ratio: 16:9/4:3

Response time: less then 10ms

Color: PAL/NTSC

Input: Video (PAL/NTSC)

Output: Video (PAL/NTSC)

SD card: 8-32G, C10

Power: Built-in rechargeable battery

Battery life: About 2.5-3 hours

Charging: Micro USB port

Antenna connector: RP-SMA

5.8G sensitivity: -94dB

Color: Black/white optional

Net weight: 220g

Size: 128.5 x 83.5 x 16.8mm

Reminder: for better display/record quality, please set the camera to NTSC format.

FAQ:

Not able to search channels automatically:

*Auto channel scan only functions in the FPV interface.

The video displayed is black-and-white:

*Check whether the camera output is black-and-white (some cameras might automatically shift to black-and-white in low-light conditions)

Can not start after connected to power:

*First fully charge the battery, Check whether the battery power is enough.

No channel can be received:

*Install antennas, and move the monitor close to the 5.8 GHz transmitter.

*Connect video signal to the transmitter.

*Check whether the channel provided by the transmitter is one of those listed in the channels-able-to-be-received-table; check with other channels.

Voltage and time do not display:

*In the menu to observe the "menu" option is for the "ON" ，shows the hidden window.

*Reset machine settings in menus

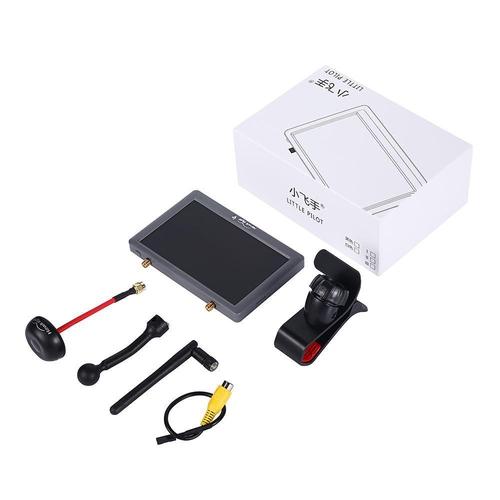

Package List:

1 x 5 inch FPV Monitor

1 x Mounting Bracket

1 x Mushroom Antenna

1 x Video Input Cable

1 x Video Out Cable

1 x Lever

1 x Stickers

1 x Manual
