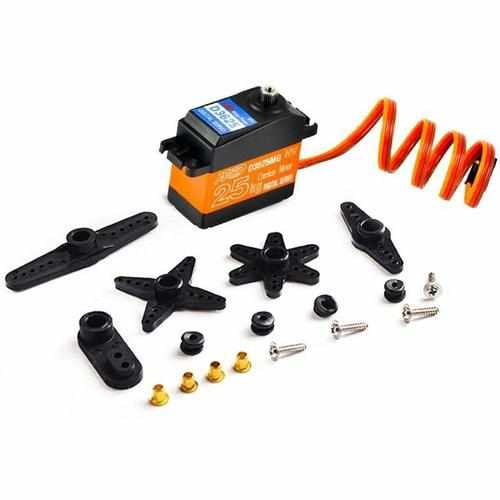

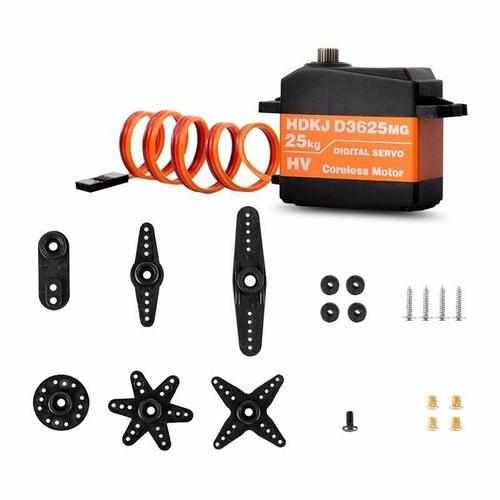

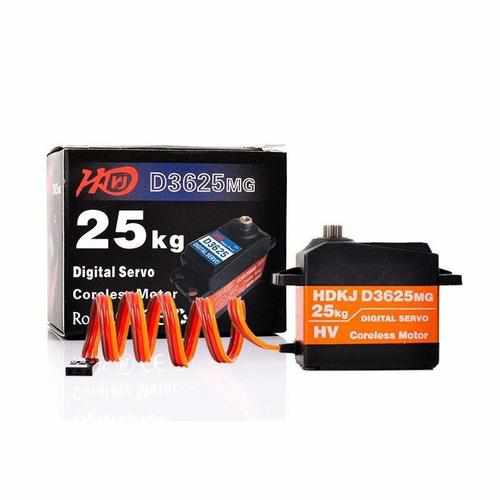

HDKJ D3625 Metal Gear Digital Servo

Features:

The servo is suitable for 1/10 1/8 RC car.

The plug, output gear and control system is compatible for Futaba, JR, HITEC.

Dual bearings reduce energy consumption and remains the accuracy for a long time.

Digital circuit board is professional in tiny control. Silicone loop prevent water efficiently, Metal gear is durable for long-term use.

It supports (4.8-9V) high voltage supply, and can be directly supplied by 2s lithium battery.

Coreless motor has high speed.

Aluminium mesochite is of good heat dissipation.

Specification:

Material: Metal

Color: Shown As Pictures

Size: Approx. 40 * 38 * 20mm

Dead Band: 4μs

Max Angle: 180°

Operation Torque: (6V) 25Kg.cm

Operation Torque: (7.2V) 26Kg.cm

Operating Speed: (6V) 0.09sec/60°

Operating Speed: (7.2V) 0.08sec/60°

No-load Current: <500mAh

Operating Voltage: 4.8 - 7.2V

Weight: 82g

Type: RC Part
