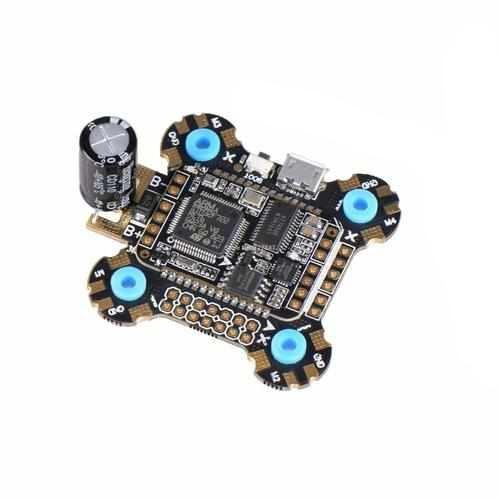

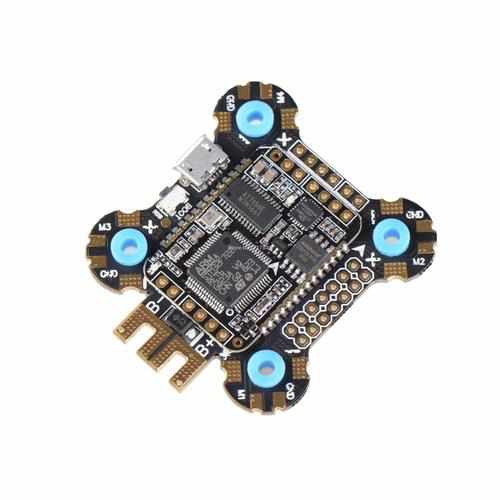

HE F722 STM32F722 Flight Controller

$184.00

Specification:STM32F722, ICM20689, BMP280, OSD, W25Q128, 5x UARTs, 6x DShot, PDB, Current Sensor, BEC 5V, MCU: 216MHz STM32F722RET6IMU: ICM20689(32K), SPIBaro: BMP280 (I2C)OSD: AT7456E (SPI)Blackbox: W225Q128(16MB)5x Uarts (1,2,3,4,6) with build-in inversion6x Dshot/Proshot/oneshot outputs1x I2CRX6 pad(one per cornet) for BLheli32 ESC telemetry4x individual...

  • Availability: In Stock

Specification:

STM32F722, ICM20689, BMP280, OSD, W25Q128, 5x UARTs, 6x DShot, PDB, Current Sensor, BEC 5V,

MCU: 216MHz STM32F722RET6

IMU: ICM20689(32K), SPI

Baro: BMP280 (I2C)

OSD: AT7456E (SPI)

Blackbox: W225Q128(16MB)

5x Uarts (1,2,3,4,6) with build-in inversion

6x Dshot/Proshot/oneshot outputs

1x I2C

RX6 pad(one per cornet) for BLheli32 ESC telemetry

4x individual ESC power/signal pads

1x Group of GND/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND

+5V filtered output power for VTX

switchable via AUX (modes tab-user1/user2)

Smartaudio & Tramp VTX protocol: Yes

WS2812 Led Strip : Yes

Beeper : Yes

RSSI: Yes

PDB Specifications

Input: 7.4~26V (2~6S LiPo) w/TVS protection

PDB: 4x40A (Max.4x50A)

BEC: 5V 2A cont. (Max.3A)

LDO 3.3V: Max.300mA

FC Firmware: BetaFlight

Target: JHEF7DUAL.hex

Physical

Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm

Dimensions: 45*49mm

Weight: 12.8g

M3(BLUE) Silicon grommets included

1000UF/25V & 470UF/25V Capacitor

GND: Ground

+5V:BEC 5V 2A cont.MAX.3A

3.3V:LDO3.3V,MAX.300MA

VBAT+: share Lipo power

B+(+) B-(-): LiPO&ESC Power pads 7.4V-26V(2-6S)

S1,S2,S3,S4,S5,S6:ESC Signal

IO1,IO2:Switch pin IO(ON/OFF,Modes tab/USER1/USER2)

VOUT:Video output for video Transmitter

VIN:Camera Video input

BUZ+ BUZ-:General active 5V buzzer for dbuz 5V

RSSI:Receiver RSSI INPUT

LED_Strip:WS2812 LED signal

SCL & SDA: I2C_SCL & I2C_SDA

RX1 & TX1: UART1

RX2 & TX2: UART2(RC Receiver,SBUS,IBUS,DSM,/ PPM share RX2 pad)

RX3 & TX3: UART3

RX4 & TX4: UART4

RX6 & TX6: UART6

Package Included

1x JHE F7

4x silicon grommets M3

1x 25V/470uF Capacitor

1x 25V/1000uF Capacitor
