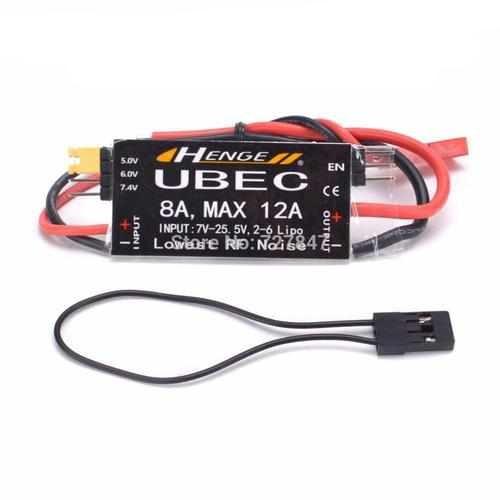

HENGE 8A UBEC Lipo Switch Mode BEC

Product Specifications:

Input voltage: 7V-25.5V(2-6S LIPO/ 6-16 cell Ni-Mh)

Output voltage: 5V/6A or 6V/6A

Current: 6A peak 8A (less than 15 seconds)

Weight: 14g

Size: 39 x 21 x 6mm (LxWxH)

Features:

Adopt the most advanced synchronous rectification switching power supply control chip design, with over-current and thermal protection, the chip at maximum efficiency as high as 93%

The small size, light weight;

Output current, continuous output current capacity of 6A peak output current capability of 8A, fully guaranteed equipment, demand for electricity;

The output line to configure the filtering magnetic ring, greatly reduces the electromagnetic interference and ensure the receiver to work;

Has a wide voltage range of 7V-25.5V can be within the normal work;

Has a feature to prevent reverse input polarity, input power supply polarity mistake will not damage equipment;

Has a working state indicator, when the output to normal when the indicator light.

Package Included:

1x HENGE 8A UBEC
