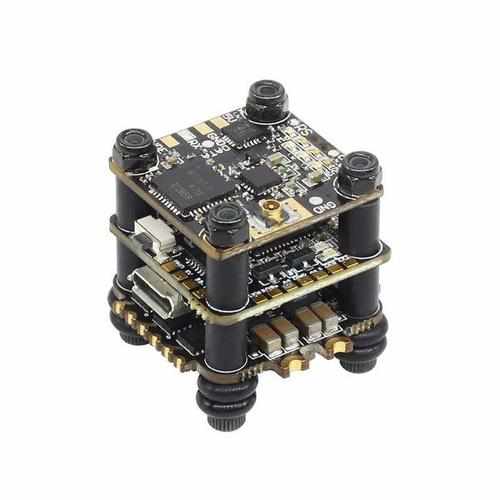

HGLRC FD413 FD413-VTX 16x16 F411 Flight Controller / 13A 2-4S Blheli_S

Specification:

HGLRC Forward FD411 Flight Controller

Item Name:FD411 Flight Controller

MPU: MPU6000-SPI

CPU: STM32F411CEU6

Black Box: NO

Input Voltage: 2-4S Lipo

Built-in Betaflight OSD to adjust PID

BEC Output: 5V 2A

Installing Hole: 16x16mm, M2

Weight:2.7g

Support SBUS/PPM/DSMX/iBUS receiver

HGLRC Forward FD13A 4in1 BLS 2-4S ESC

Item Name: FD13A 4in1 2-4S ESC

Input Voltage: 2-4S Lipo

Constant Current: 13A

Peak Current: 15A(5S)

BEC Ouput: NO

Size: 23x24mm

Installing Hole: 16x16mm, M2

Weight: 3.2g

CPU: SILABS EFM8BB2 48MHZ

MOS Tube: TOP QUALITY MOSFET

Support Damped Mode :

DSHOT600/300/150/Oneshot125/42,MultiShot,PWM

HGLRC FD VTX Micro 400mW

Item Name: FD VTX Micro

Output Power: PIT/25mW/100mW/200mW/400mW Switchable

Input Voltage: DC 5V

PIT---------0dBm------70mA

25mW-----14dBm-----150mA

100mW----20dBm-----210mA

200mW----23dBm-----280mA

400mW----26dBm-----360mA

Installing Hole: 16x16mm, M2

Size: 20x20mm

Antenna: IPEX

Weight: 1.5g

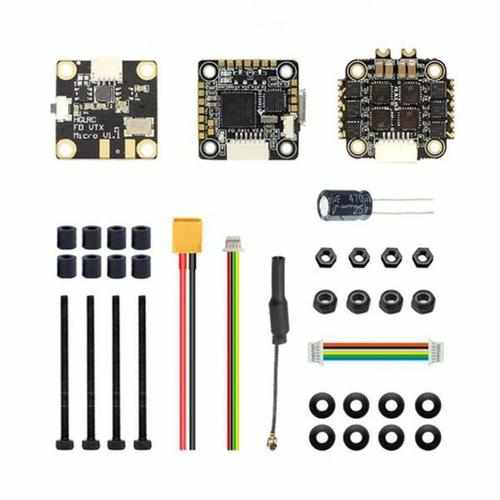

Package Included:

1x FD411 Flight Controller

1x FD13A 4in1 BLS ESC

1x FD VTX Micro
