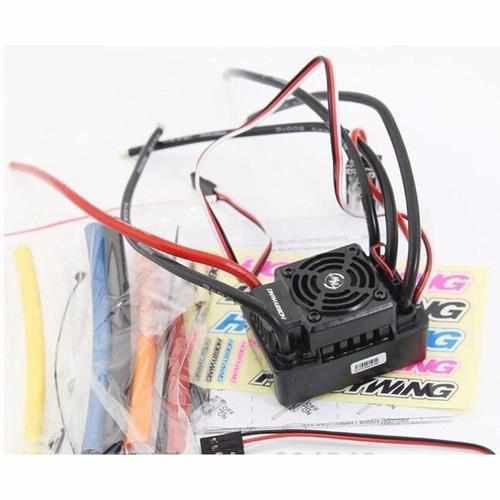

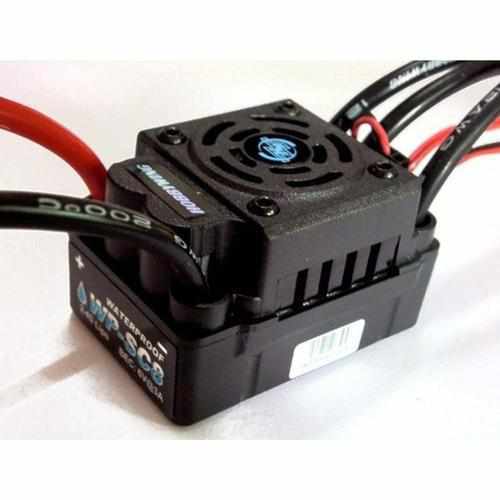

Hobbywing EZRUN WP SC8 120A-RTR Brushless ESC

Products Description:

1.1 Output: EZRUN-SC8: Continuous 120A, burst 760A;

1.2 Input: EZRUN-SC8: 6-12 cells NiMH/NiCd or 2-4S Lipo;

1.3 BEC Output: * Note #1

EZRUN-SC8: 6V/3A (Switching mode);

1.4 Resistance: EZRUN-SC8: 0.0004 Ohm;

1.5 Motor Supported: Sensorless Brushless Motor;

1.6 Suitable Brushless Motor:
EZRUN-SC8:

With 6 cells NiMH/NiCd or 2S Lipo: KV≤6000;

With 7-9 cells NiMH/NiCd or 3S Lipo: KV≤4000;

With 10-12 cells NiMH/NiCd or 4S Lipo: KV≤3000;

1.7 Suitable Car:

EZRUN-SC8: 1/10 4WD SCT, 1/8 2WD and 4WD buggy and SCT (Include TRAXXAS 1/10 SCT);

1.8 Size: 53.5mm(L) * 36mm(W) * 36mm(H);

1.9 Weight: EZRUN-SC8: 98g;
