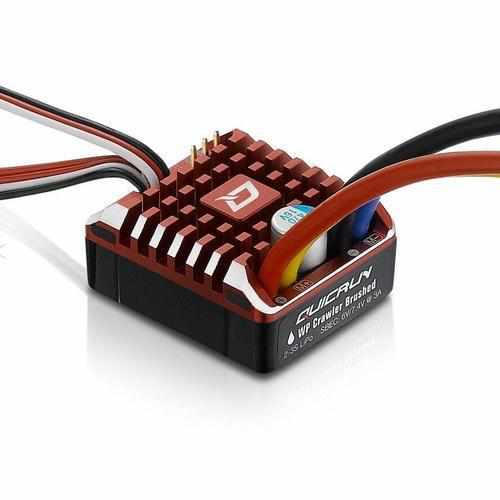

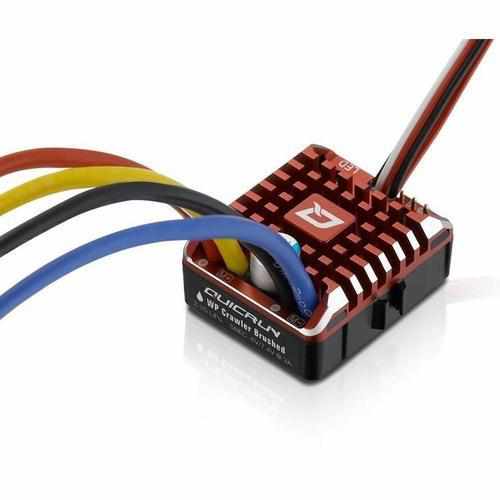

Hobbywing QuicRun 1:10 1/8 WP Crawler Brush 80A Electronic Speed Contr

Type :

Scale : 1/8th & 1/10th

Brushed/Brushless : Brushed

Waterproof : Waterproof

Specifications :

Cont./Peak Current : 80A/400A

Input Voltage : 2-3S Lipo/5-9 Cell NiMH

BEC Output : Switch Mode: 6V/7.4V 3A

Wires & Connectors :

Input Wires : Red-14AWG-200mm*1 / Black-14AWG-200mm*1

Output Wires : Blue-14AWG-200mm*1 / Yellow-14AWG-200mm*1

Input Connectors : XT60 /T PLUG Connectors

Output Connectors : No

(Note: All the wire length above is the original length not the length you see from the outside.)

ESC Programing via :

SET Button on ESC : Supported

LED Program Box : Supported

LCD Program Box : Not Supported

WiFi Module : Not Supported

Program Port : Separate Program Port

Firmware :

Firmware Upgrade : Not Supported

Size & Weight :

Size : 36.2x31.6x17.0mm

Weight : 58.5g (w/Wires)

Applications :

Motors : Brushed Motor (540/550/775 size motors)

Vehicles : 1/8th,1/10th Rock Crawlers

Brushed Motor Limit with 2S LiPo/6S NiMH: ≥10T or RPM<30000 7.4V

Brushed Motor Limit with 3S LiPo/9S NiMH: ≥16T or RPM<20000 7.4V

Package List:

1 * 80A 1080 ESC(XT60 OR T plug)

1 * English Manual

1* Set Card
