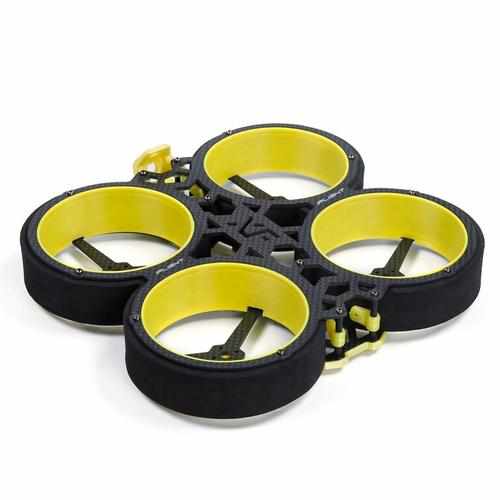

iFlight BumbleBee CineWhoop Frame Kit

Description:

This frame kit is special for DJI AIR UNIT

What if you take iFlight popular MegaBee frame and optimize it in every detail? You get the BumbleBee!

The whole was frame reduced to a minimum size, minimum weight, achieved a 140mm diagonal motor distance and even fit the DJI Air Unit inside.

We've also added a new bumper approach in cooperation with Laurent Athenol (Frame-Concept).

Small space? Tight gaps? Indoor safety? But you need that 4K? Well, here goes your GoPro!

There's always that customer that has this indoor project but just want to get footage in 4K.

Features:

Full 3K Carbon Fiber airframe + protective TPU

Lightweight frame that can take some hits

Prop guards to protect the sensitive environment or yourself

Full-size mount + TPU case;

BumbleBee Specs:

Wheelbase: 142mm

Bottom plate thickness: 2mm

Top plate thickness: 2mm

Top and bottom plate spacing: 25mm (aluminum column height 25mm)

Propeller size: 3 inch

FC pattern: 20*20mm,30.5*30.5mm

FPV cam spacing: 19mm

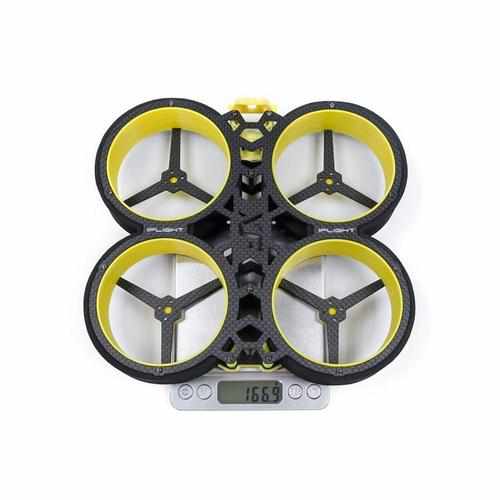

Weight: 166.9g

Suggest parts (not included):

for HD:

SucceX-A F4/40A BLHeli32 true AIO board

Motor: XING 1507 3300KV 4S /2800KV 6S

DJI AIR UNIT

DJI Digital HD FPV Goggles

DJI Remote Controller

3045 CW CCW Propeller

For Analog:

SucceX-E mini F4 Flight Controller

SucceX mini 40A ESC

Motor: XING 1507 3300KV 4S /2800KV 6S

3045 CW CCW Propeller

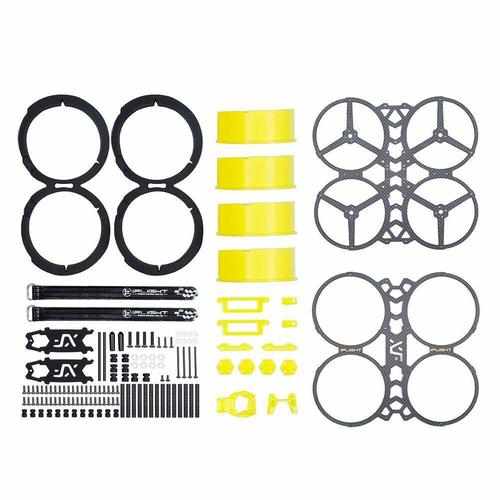

Package included:

1x BumbleBee HD Frame

1x TPU Bracket for DJI Air Unit Module

1x TPU Antenna holder for DJI antenna

2x TPU camera side plate soft mount

1x iFlight Lipo Strap
