iFlight DOVE Lite V3 218mm Arm 3K Carbon Fiber Stretch X 5 Inch Racing Frame Kit

$517.00

Specification: Brand Name: iFlight Model: DOVE Lite V3 Item Name: 218mm 5mm Arm 3K Carbon Fiber Stretch X 5 Inch Racing Frame Kit Frame wheelbase: 218mm Standoff Height: 28mm Arm Plate Thickness: 5mm , Arm Plate Width: 7mm Top Plate...

  • Availability: In Stock
Type

Specification:

Brand Name: iFlight

Model: DOVE Lite V3

Item Name: 218mm 5mm Arm 3K Carbon Fiber Stretch X 5 Inch Racing Frame Kit

Frame wheelbase: 218mm

Standoff Height: 28mm

Arm Plate Thickness: 5mm ,

Arm Plate Width: 7mm

Top Plate Thickness: 2mm

Botomm Plate Thickness: 2mm

Vertical Side Plate Thickness: 1.5mm

The distance between vertical side plates: 19mm

The distance between the top and upper plates: 25mm

Mounting Holes: 20*20, 30.5*30.5mm

Frame weight: 65g approxi.

Features:

Super lightweight (airframe weighs 65g only)

Chamfered & 45°cut 3K carbon makes the frame extra strong

Super durable 5mm thick Arms

Popular Stretch X configuration

20*20,30.5*30.5 mount holes for all flight controllers

Compact & easy repairing design

Recommended Parts:

Flight Controller: 20x20mm / 30.5x30.5mm F3/ F4/ F7 Flight Controller

Motor: XING 22XX or bigger size Moto

ESC: 20-45A

Propeller: Max 5.1 Inch Propeller

Camera: 19mm Width FPV Camera

Battery: 4S-6S Lipo battery

Package Included:

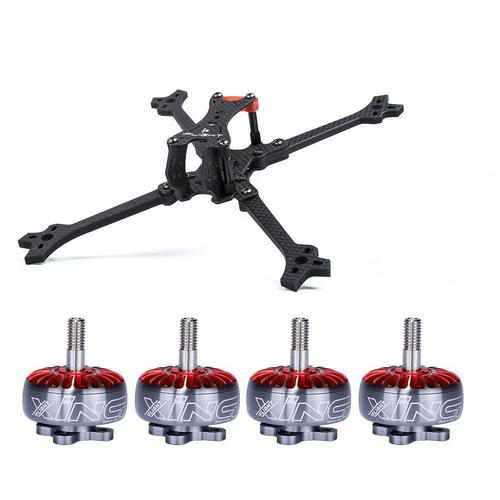

1x iFlight Dove LITE V3 FPV Race Frame Set

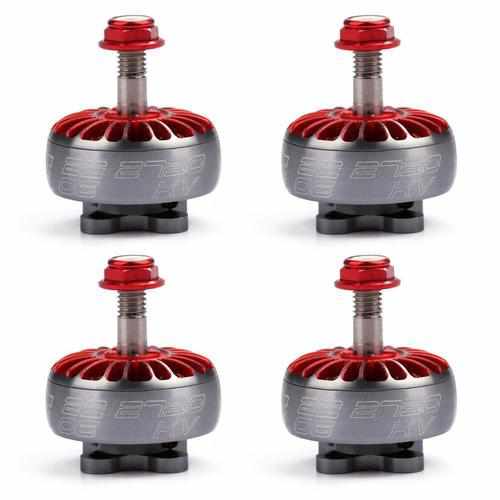

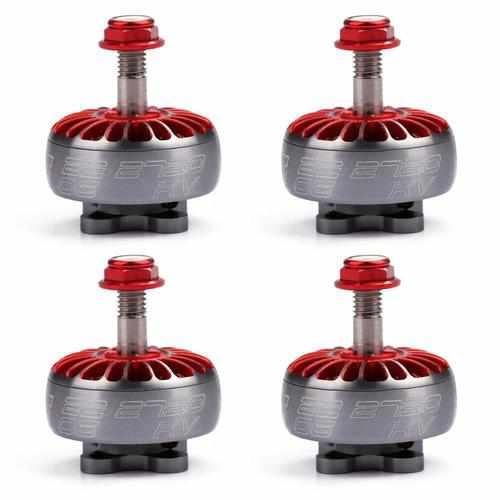

4X XING X2206 Motor
