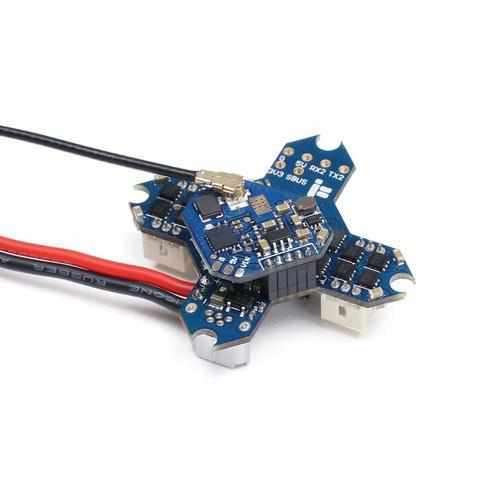

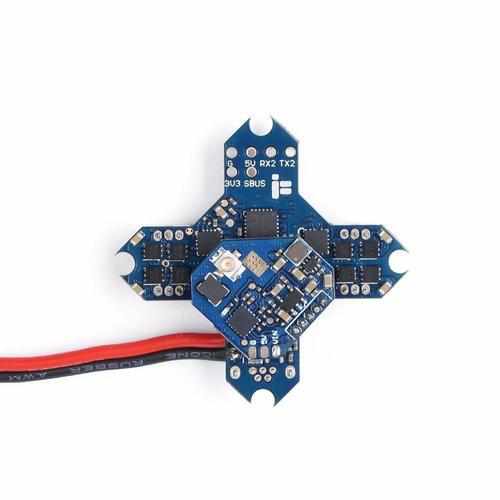

Iflight SucceX-1S 5A Whoop F4 AIO Board (MPU6000) with VTX Stack

PRODUCT DESCRIPTION

TOP FEATURES:
Power supply: 1S
Super light only 5.4g
MCU:STM32F411
Gyro:MPU6000
Support BLHeliSuite programmable
5A continuous current

FC // SucceX-1S Whoop AIO Board
Size:29*29mm
Mounting pattern: 25.5*25.5mm/φ3mm (half-hole)
Connector:Micro-USB
Weight: 5.4g (with power cable, vtx, and vtx antenna)
MCU:STM32F411
Gyro:MPU6000
Blackbox:no
BEC output:5V 1.2A
INA pad:n uart2
Barometer:no
FC Firmware:MatekF411RX
ESC Firmware:O-H-30 BLS 16.8

ESC // 5A
Current: 5A continuous and peak 6A
Current scale: 400
Input:1S
Signal Support: Dshot,Oneshot,Multishot
Current sensor:yes
BLHeli:BLHeli-S
ESC Telemetry:no

VTX:
Input voltage: 5V
Channels: 48CH
Power: PIT/25/50mW
Connector:UFL/IPEX

Package Includes:
1 x SucceX-1S 5A Whoop F4 AIO Board (MPU6000)
1x Whip antenna
