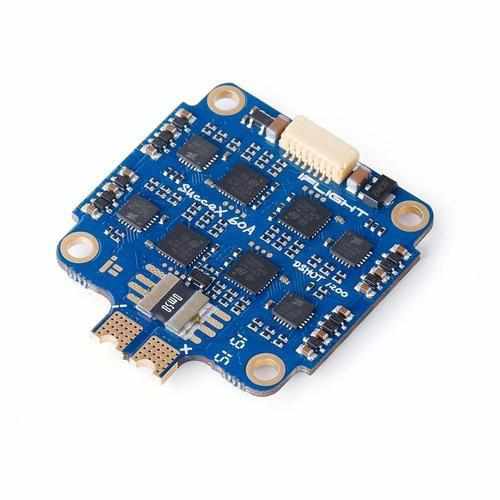

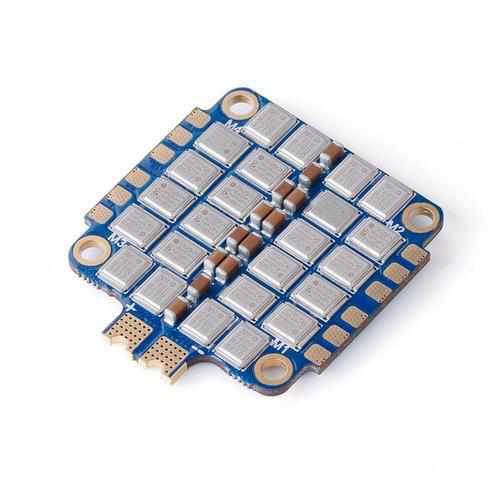

IFlight SucceX BLheli_32 Dshot1200 2-6S 4in1 Brushless ESC

SucceX 60A V2 Plus BLHeli_32 4-in-1 ESC
PRODUCT DESCRIPTION
The SucceX 60A V2 Plus 32bit BL Dshot1200 4in1 ESC was designed to give your motors smooth power with great stability and durability. The 32bit 48mHz 3-IN 1 STM32F051 MCU, Metal MOSFET, TDK MLCC Low ESR ceramic capacitors provide high efficiency and better heat dissipation.

Standard 30.5*30.5 Φ4mm mounting holes; Vibration and impact can be perfectly avoided by adding dampers; Rational layout design with extended solder pads ensures easy fixes or adjustments; Countersunk holes on the soldering pad enable each layer board can be powered.

Excellent hardware, optimized circuit, and high-performance components enable SucceX 60A V2 Plus 4in1 ESC to respond efficiently. All in all, it brings faster-responding speed and smoother flying experience!

Features:

8 layers single-board stacking PCB board;

4oz 1.6mm thick power board(0.9mm copper ratio),better operating load capacity;

32bit FO51K86 MCU,48mHz running speed;

TDK MLCC Low ESR ceramic capacitors;

Top grade metal MOSFET;

Rational layout, countersunk holes on extended motor soldering pad enable each layer board can be powered.

Specification:

Dimension:43x39mm

Mounting Holes: 30.5*30.5mm/Φ4mm

Weight: 13.4g

Supports 2-6S lipo input

STM32F051 MCU, 48Mhz Runs BLHELI 32.X Firmware

Current sensor: Yes

BEC: No

Supports: DShot DShot150/300/600/1200/MultiShot/ OneShot etc.

Target: iFlight-BL32-4 in 1

RECOMMENDATION:

No additional capacitor needed up to 5S!

But to encounter back EMF and ensure the longevity of your electronics, min. 220uF Cap 35V for 4-5S, 50V for 6S on your main lead!

Package Included:

SucceX 60A V2 4-in-1 ESC * 1pc

Power cables & ESC signal wires * 1set
