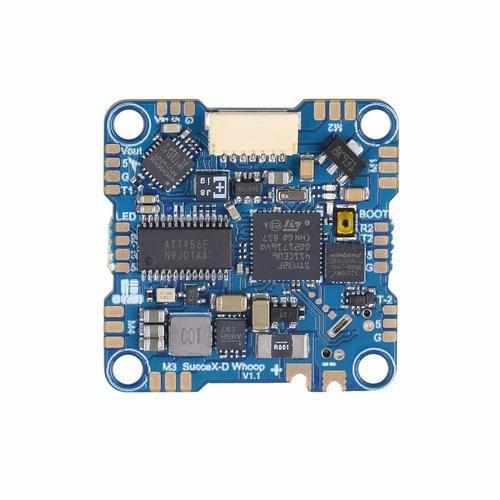

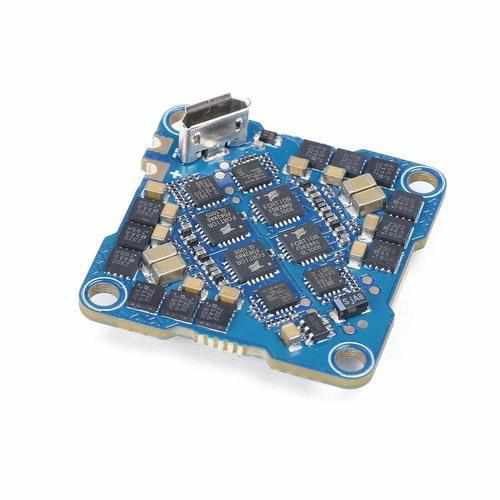

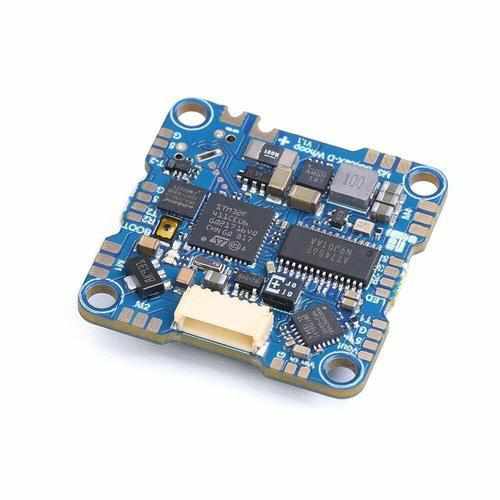

iFlight SucceX-D F4 Flight Controller AIO OSD BEC / Built-in 20A ESC

Specification:

Brand Name: iFlight

Model: SucceX-D Whoop

Item Name: F4 Flight Controller Built-in 20A ESC

SucceX F4 Flight Controller

STM32F411

Input voltage 2-5S Lipo

Gyro: MPU6000

2x UART2-RX

OSD inbuilt

Blackbox FLASH: 8MB

BEC 5V 2A / 10V 2A

Size:30.5*30.5mm

Mounting holes: 3mm 25.5*25.5mm

Weight: 6.6g

BF target : IFRC/IFF411PRO(STM32F411)

Current Scale: 210

Built-in SucceX 20A ESC

Firmware: Blheli_S G-H-30

Input voltage : 2-5S LIPO,

Continuous current: 20A

ESC protocol: Supports Dshot600 ,Oneshot,Multishot

Package Included:

1x iFlight Succe-D Whoop F4 FC Built-in 20A ESC
