iFlight SucceX-D F7 Mini TwinG Flight Control FC 40A 50A 60A ESC

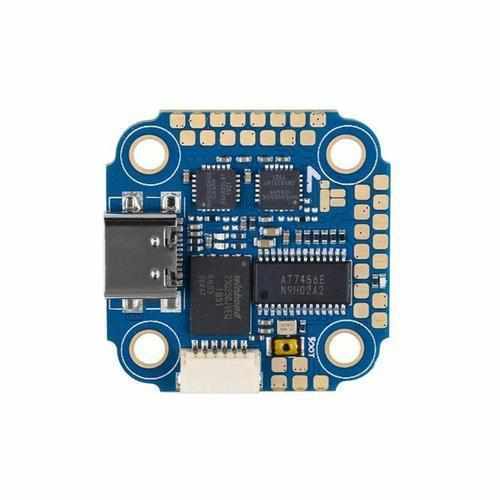

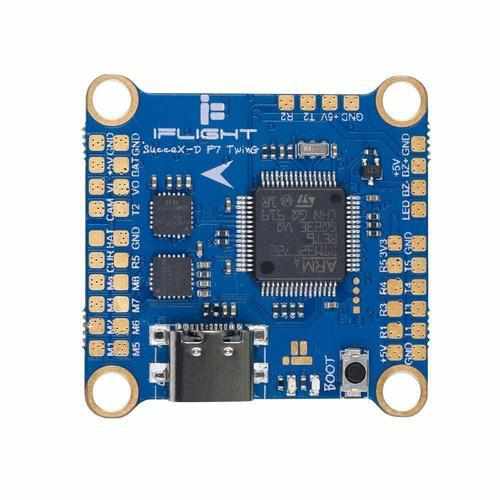

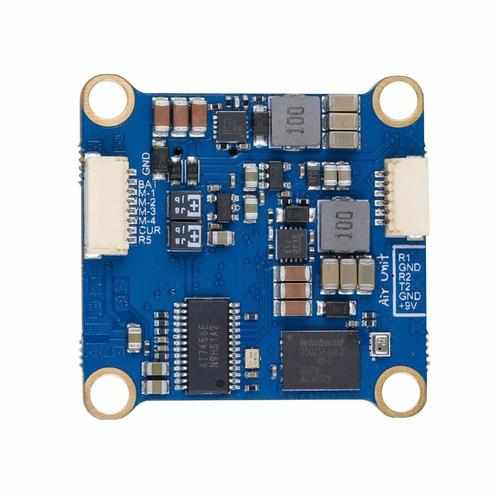

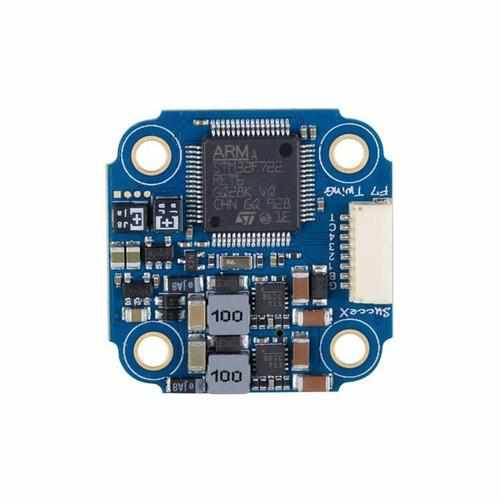

SucceX-D F7 mini TwinG flight controller

Outside dimensions / mm 29 * 29

Hole size / mm 20 * 20 / φ3

USB type TYPE-C

MCU F722

Gyroscope / gyro 2xICM20689

Black Box 32MB

OSD chip AT7456E

BEC maximum output 5V2.5A / 9V2.5A

uart quantity 5

telemetery support

Inverter interface F7 does not require inversion

Voltage 2-6S

Barometer None

RSSI pad None

LED support

BB 响 Support

Number of motor outputs 5

Ammeter support

Weight 5.5g

target / Flash target name STM32F7X2

CLI config definition IFF7_TWIN_G.config

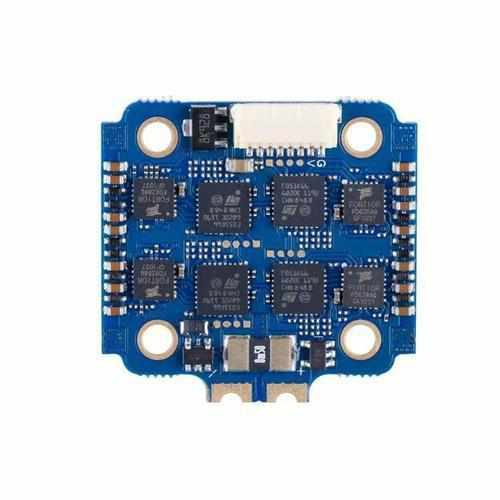

SucceX 40A mini 4in1 ESC

Outside dimension / mm 30 * 31

Hole size / mm 20 * 20 / φ3

Current support 40A

Maximum current 45A

Voltage input 2-6S

Current sensor yes

BLHeli BL32

telemetery yes

BEC None

Weight 7.2g

Protocol DSHOT1200

target iFlight-BL32-4in1 BL32-32.6
