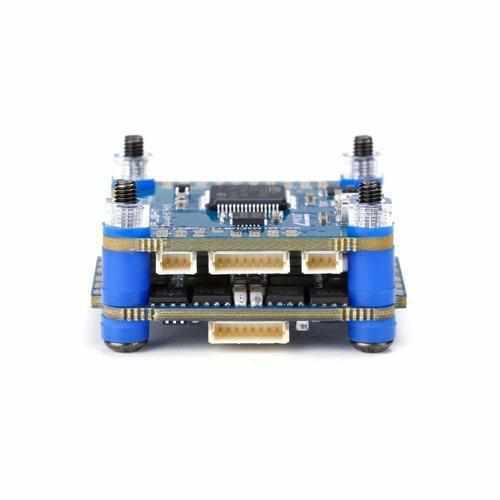

iFlight SucceX-E F4 MPU6000 Flight Controller Stack

Description：

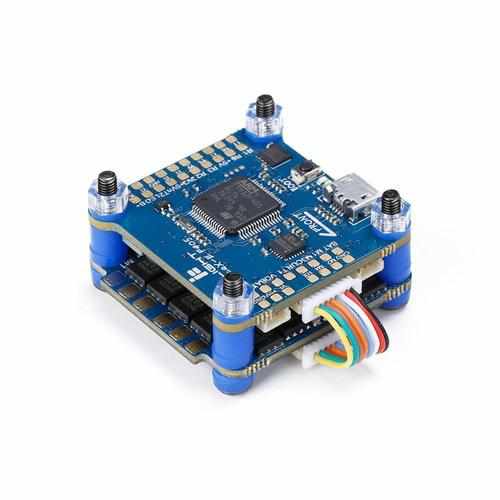

SucceX-E F4 Flight controller Specification:

MCU：STM32F405

IMU：MPU6000

Betaflight OSD：YES

Blackbox：8MB

4X Uarts（1 2 3 6 )

8 x Dshot/Proshot/Oneshot output

8 x individual ESC power/ signal pads

1 x Group of Gnd/Vbat/M1/M2/M3/M4/Cur/TX

VTX protocol：YES（IRC Tramp）

WS2812 led Strip：YES

Baro：No

Beeper：YES

Input：2-6S（Max 8S）

BEC：5V/2.5A cont

Firmware :betaflight_4.0.5_BETAFLIGHTF4.hex

Physical

Mounting：30.5*30.5mm，φ4mm with Grommets φ3mm

Dimensions：36*36mm

Weight：7.6g

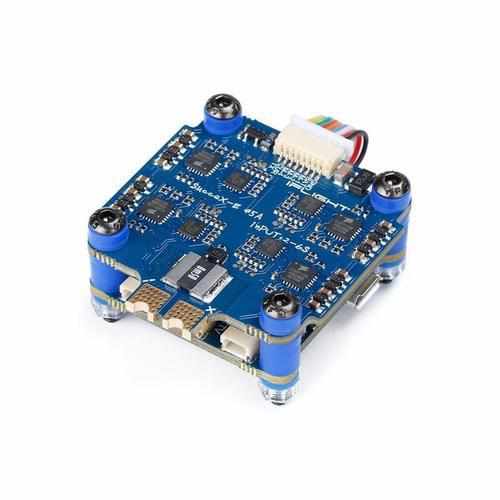

SucceX-E 45A 4in1 ESC Specification:

Dimension: 40*43mm

Mounting Holes: 30.5*30.5mm/Φ3mm

Weight:14.4g

Supports 2-6S Lipo input

STM32F051 MCU, 48Mhz Runs BLHELI 32.X Firmware

Current sensor: YES

BEC: NO

Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.

Target: G-H-30 BLS 16.7

Package included:

1pc x SucceX-E F4 Flight controller

1pc x 45A 4in1 ESC

1x Wires bag
