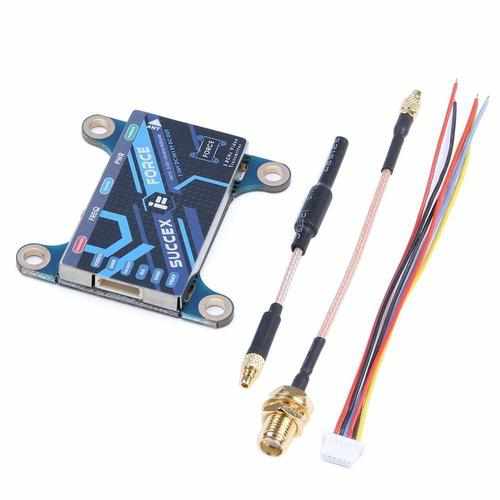

iFlight SucceX Force 5.8G 800mW FPV Video Transmitter VTX

Features:

The output power is stable;

Transmit power 4 gear switch: 25mW/200mW/400mW/800mW;

Output 48 frequency points,

Frequency lock fast, the boot does not interfere with companions;

Built-in output power self-check function;

Full format video format: NTSC /PAL;

Wide input voltage range. low power consumption:

7V～36V,+12V/380mA@800mW;

Small size:36*36*3mm

Mounting holes 4-M3

Lightweight: 7.2g(excluding antenna)

Specs:

Item: SucceX-Force 800mW adjustable VTX

Input voltage:

Output voltage/ Max current: 5V 1A

12V input current: 40mA@PIT MODE, 95mA@25mW, 185mA@200mW,250mA@500mW, 380mA@800mW

Output 48 frequency points,

w/ microphone AGC technology

size:36*36*3mm

PIT/25mW/200mW/400mW/800mW/1000mW

Package included:

SucceX-Force 800mW adjustable VTX x1pc

cables x 1set
