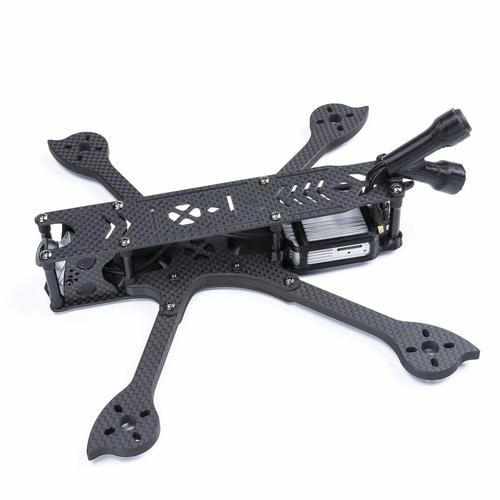

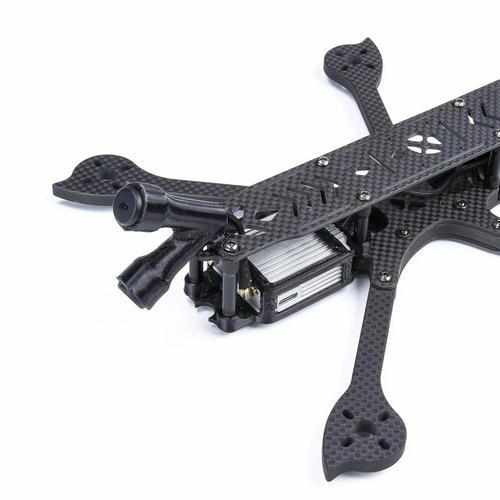

iFlight TITAN DC5 V1.4 222mm 5inch FPV HD Freestyle Frame for FPV Dron

Description：

Changelog 1.3 to 1.4:

The new version has an improved arm design. Increased strength and width at the screwed anchor points, increased carbon thickness from 5mm to 6mm. All earlier versions of the DC5 V1.4 are compatible.

The TITAN DC5 V1.4 HD Frame perfect fits the amazing new DJI FPV system, this quad makes flying FPV truly breathtaking.

Features:

Popular Deadcat style configuration, No prop in View

Optimized weight distribution: DJI unit and Stack centered

Fits both 30.5x and 20x stacks

Full 3K Carbon Fiber airframe with chamfered arm

222mm wheelbase

Specifications:

Weight: 150.4 (with TPU parts, and battery anti-slip pads)

Wheelbase: 222mm

Main body dimension: 185*133mm

Bottom to top distance: 35mm

Arm thickness: 6mm

Bottom plate thickness: 3mm

Top plate thickness: 2.5mm

Camera plate thickness: 1.5mm( 2.5mm included TPU inserts)

Mounting Holes: 30.5*30.5mm

Support camera size: 19*19mm 22*22mm

Recommended motors: 22xx, 23xx

Package included:

1 x TITAN DC5 V1.4 HD Frame

1 x Screw Bag

1 x TPU Camera mount adapters

4 x Arm guard/Motor mount

1 x TPU DJI Air Unit Bracket Mount

1 x TPU DJI Air Unit Antenna Mount

1 x TPU bottom plate front protective mount

1 x TPU bottom plate rear protective mount

1 x Battery Anti-slip Mat

2 x Battery Straps
