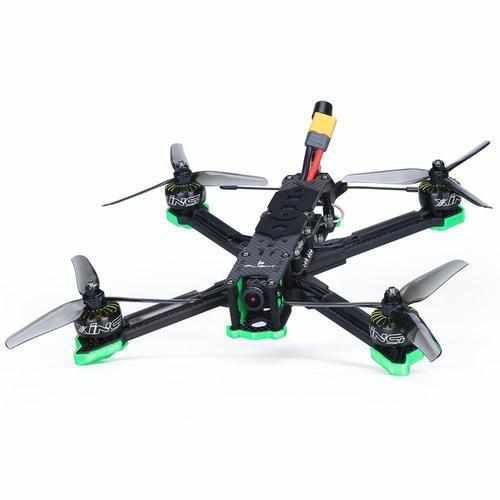

iFlight TITAN XL5 250mm 5inch 4S 6S FPV Drone BNF

Description：

After our popular TITAN DC5 (DeadCat style frame) approach we decided to take a step back to the roots and create a new X-Geometry frame to get the best performance on both axis and better weight distribution for freestyle.

HIGHLIGHTS:

6mm arm design for more durability

XING 2208 motors for more power

GPS pre-installed for more safety at distance

Variable GoPro TPU mount (supports ND-Filter inserts)

360° TPU protection and Antenna mounts

PRE-TUNED & PRE-SETUP:

Don't worry about tuning, we did that for you already! A basic PID- and Filter tuning was appplied for a great flight experience!

GPS-rescure mode is configured and just needs to be enabled in your Betaflight Configurator! (Please be aware of how it works before you use it!)

Angle-Mode (self balancing level mode) is enabled by default to make sure your first flight doesn't end in a mess!

Motor Power is configured to 70% throttle limit (scaled) by default to give more throttle stick resolution for an easy start on the 6S 1800kv version. Need more Power? Just enable 100% in the Betaflight Configurator to unleash the Beast!

FRAME // TITAN XL5：

Weight ：145g

Wheelbase: 250mm

Main body dimension: 185*133mm

Bottom to top distance: 30mm

Arm thickness: 6mm

Bottom plate thickness: 2mm

Top plate thickness: 2mm

Camera plate thickness: 2mm (2.5mm included TPU inserts)

ELECTRONICS // SucceX-E F4 Stack (45A 4-in-1 ESC)：

SucceX-E F4

MCU：STM32F405

IMU：MPU6000

Betaflight OSD：YES

Blackbox：8MB

4X Uarts（1 2 3 6 )

8 x Dshot/Proshot/Oneshot output

8 x individual ESC power/ signal pads

1 x Group of Gnd/Vbat/M1/M2/M3/M4/Cur/TX

VTX protocol：YES（IRC Tramp）

WS2812 led Strip：YES

Baro：No

Beeper：YES

Input：2-6S（Max 8S）

BEC：5V/2.5A cont

Firmware :betaflight_4.0.5_BETAFLIGHTF4.hex

SucceX-E 45A 4in1

Dimension: 40*43mm

Mounting Holes: 30.5*30.5mm/Φ3mm

Weight:14.4g

Supports 2-6S Lipo input

STM32F051 MCU, 48Mhz Runs BLHELI 16.X Firmware

Current sensor: YES

BEC: NO

Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.

Target: G-H-30 BLS 16.7

BLHeliSuite download: http://www.mediafire.com/file/1tn449x6815upat/BLHeliSuite16714901.zip/file

BNF // Parts list (Build)

1x TITAN XL5 4S 6S FPV Drone - BNF

2 sets Nazgul 5140 propellers

1x GPS Module

Additional Suggested Parts (optional)

Battery 4S 1550mAh，6S 1300mAh

Adjustable GoPro mount (0-60°)
