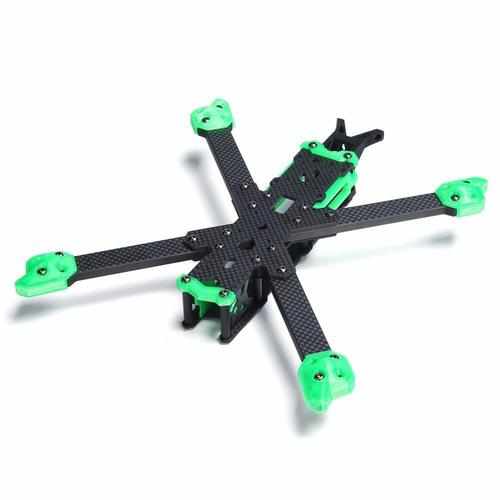

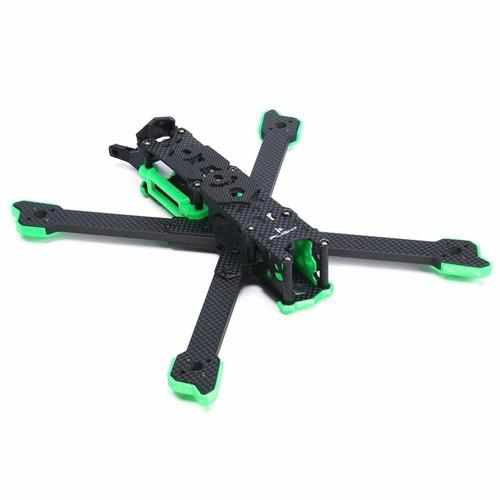

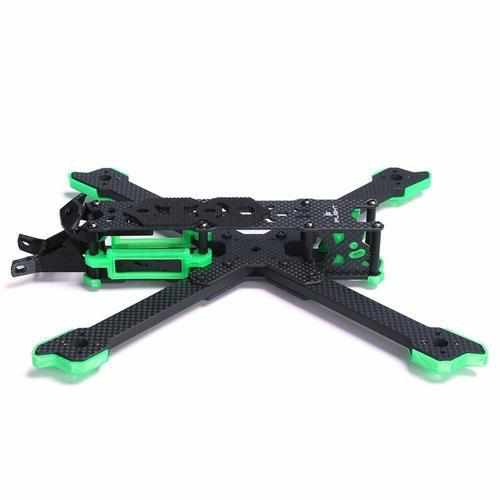

iFlight TITAN XL5 HD Analog 250mm 5inch FPV Freestyle Frame

Description：

After our popular TITAN DC5 (DeadCat style frame) approach we decided to take a step back to the roots and create a new X-Geometry frame to get the best performance on both axis and better weight distribution for freestyle.

Features:

6mm arm design for more durability

XING 2208 motors for more power

GPS pre-installed for more safety at distance

Variable GoPro TPU mount (supports ND-Filter inserts)

360° TPU protection and Antenna mounts
FRAME // TITAN XL5：

Weight:145g

Wheelbase: 250mm

Main body dimension: 185*133mm

Bottom to top distance: 30mm

Arm thickness: 6mm

Bottom plate thickness: 2mm

Top plate thickness: 2mm

Camera plate thickness: 2mm (2.5mm included TPU inserts)

DJI AIR UNIT MOUNT (Optional)

Recommended Parts: (NOT INCLUDED)

ELECTRONICS // SucceX-D F7 Stack (50A 4-in-1 ESC)：

Universal USB Type C connector instead of micro USB

Plug-and-Play DJI support. No need to solder tiny wires!

SucceX-D F7

with 216MHz STM32F722 with 2x ICM20689 Gyros ready for SensorFusion.

Up to 8S, Barometer, 32MB Blackbox Flash and 5V/9V to power all you might need.

SucceX 50A 4in1

with BLHeli_32 up to 48kHz, 8 layers double-sided PCB and Top grade Mosfets

XING 2208 Motor Unibell（4S 2450KV，6S 1800KV）

Package included:

1 x TITAN XL5 Frame

1 x Screw Bag

1 x TPU Camera mount adapters

4 x Arm guard/Motor mount

1 x TPU DJI Air Unit Antenna Mount

1 x TPU bottom plate front protective mount

1 x TPU bottom plate rear protective mount

1 x Battery Anti-slip Mat

2 x Battery Straps

1 x TPU DJI Air Unit Bracket Mount (optional)
