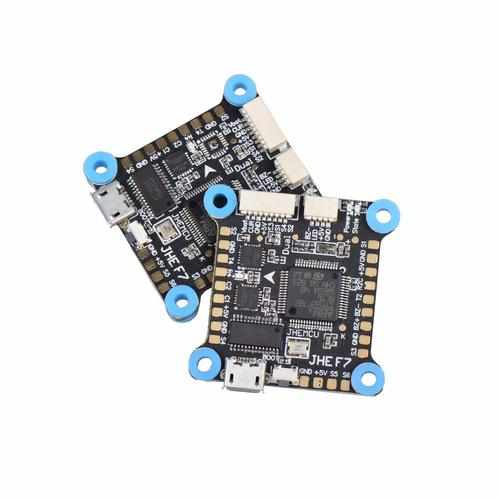

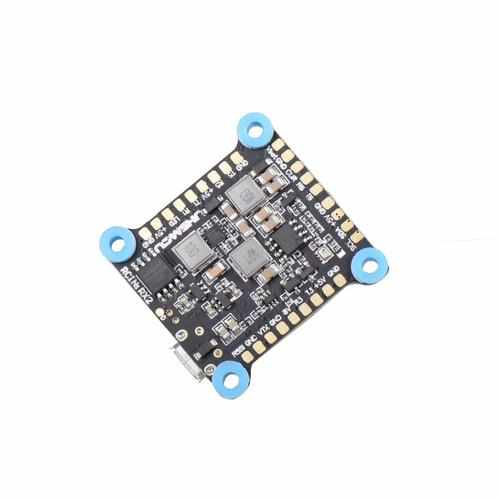

JHEMCU Dual Gyro F7 Flight Controller

JHEMCU Dual F7, using STM32F722RET6 high-performance processor, ICM2689+MPU6000 dual gyroscope, switching through CLI command, the default is ICM20689. Integrated OSD, built-in 5V/2A (internal power supply, receiver, LED, BUZZER, etc.), 8V/3A BEC (camera and picture transmission mode power supply, can be controlled by USER2 to turn it on and off), two independent BEC work separately , do not interfere with each other, optimized circuit design, high-performance hardware, further guarantee the powerful performance of the flight control. Support two camera inputs (C1, C2 is the video input interface, controlled by USER1 switch, the default C1 is the input signal). The perfect interface definition, leaving the available interfaces. In addition, 8P and 6P 1.0MM sockets are designed to facilitate direct input of the plug wire. Built-in 16MB of onboard memory, with 16kHz recording rate, record flight data, in order to support the 32K update frequency.

The flight controller is divided into standard version (Acro) and deluxe version (Deluxe). The standard version (Acro) does not support barometer (BMP280) + black box (16MB) + gyroscope (MPU6000), please know.

Technical Parameters:

Model: JHEMCU Dual F7

Main control chip: STM32F722RET6 216MHz

Gyro: Dual ICM20689+MPU6000 dual gyroscope access (SPI), standard version (Acro) does not support MPU6000

Barometer: BMP280 standard version (Acro) does not support

OSD chip: AT7456E

Black Box: 16MB Standard Edition (Acro) does not support

LED programming: support

BB ring: support

Input voltage: 2-6S

I2C interface: support

BEC-1: 5V/2A (internal power supply, receiver, LED, BUZZER, etc.)

BEC-2: 8V/3A (camera and picture transmission mode power supply, can be controlled by USER2 to turn it on and off)

Dual camera input: support (C1, C2 is the video input interface, controlled by USER1 switch, default C1 is the input signal)

Serial control port: six channels (UART1, UART2, UART3, UART4, UART5, UART6)

Flight Control Firmware: Betaflight

Target: JHEF7DUAL.HEX

Hole position and damping ball hole position conversion: 30.5*30.5mm, φ4mm

Flight control size: 36*36mm

Weight: 7.5g
