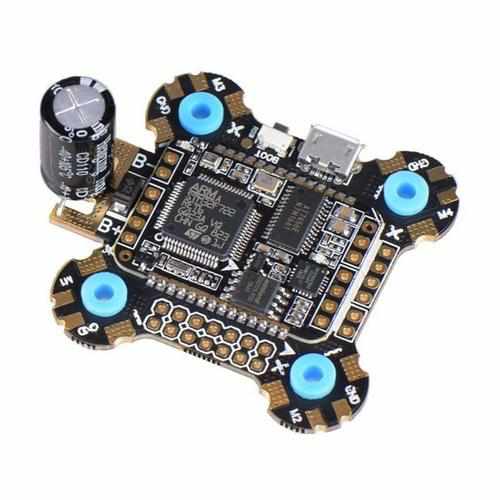

JHEMCU F722 Flight Control Board

Specification:

Brand name: JHEMCU

Item name: F722 Betaflight Flight Controller w/ 25V Capacitor

MCU: 216MHz STM32F722RET6

IMU: ICM20689(32K), SPI

Baro: BMP280 (I2C)

OSD: AT7456E (SPI)

Blackbox: W225Q128(16MB)

5x Uarts (1,2,3,4,6) with build-in inversion

6x Dshot/Proshot/oneshot outputs

1x I2C

RX6 pad(one per cornet) for BLheli32 ESC telemetry

4x individual ESC power/signal pads

1x Group of GND/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND

+5V filtered output power for VTX

switchable via AUX (modes tab-user1/user2)

Smartaudio & Tramp VTX protocol: Yes

WS2812 Led Strip : Yes

Beeper : Yes

RSSI: Yes

Input: 7.4~26V (2~6S LiPo) w/TVS protection

PDB: 4x40A (Max.4x50A)

BEC: 5V 2A cont. (Max.3A)

LDO 3.3V: Max.300mA

FC Firmware: BetaFlight

Target: JHEF7DUAL.hex

Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm

Dimensions: 45*49mm

Weight: 12.8g

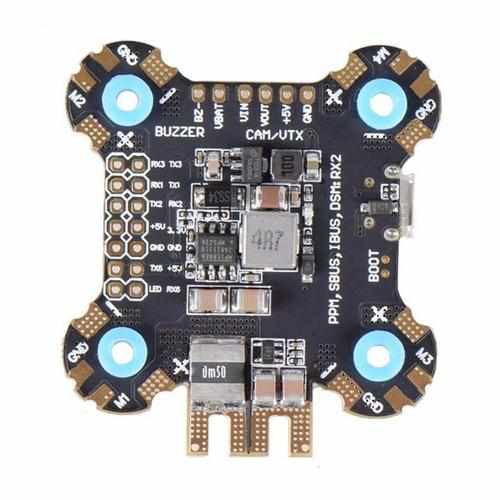

Other detial information:

GND: Ground

+5V: BEC 5V 2A cont.MAX.3A

3.3V: LDO3.3V,MAX.300MA

VBAT+: share Lipo power

B+(+) B-(-): LiPO&ESC Power pads 7.4V-26V(2-6S)

S1,S2,S3,S4,S5,S6: ESC Signal

IO1,IO2: Switch pin IO(ON/OFF,Modes tab/USER1/USER2)

VOUT: Video output for video Transmitter

VIN: Camera Video input

BUZ+ BUZ-: General active 5V buzzer for dbuz 5V

RSSI: Receiver RSSI INPUT

LED_Strip: WS2812 LED signal

SCL & SDA: I2C_SCL & I2C_SDA

RX1 & TX1: UART1

RX2 & TX2: UART2(RC Receiver,SBUS,IBUS,DSM,/ PPM share RX2 pad)

RX3 & TX3: UART3

RX4 & TX4: UART4

RX6 & TX6: UART6

Package Included:

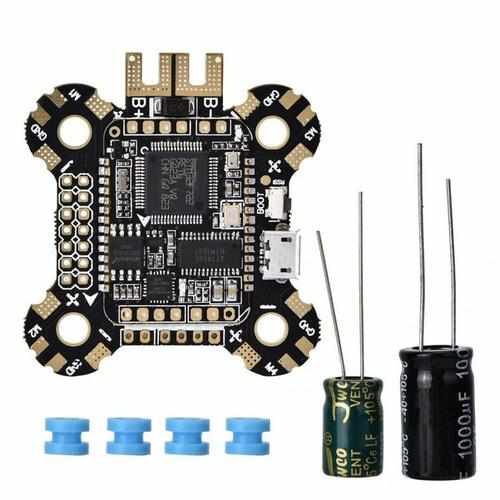

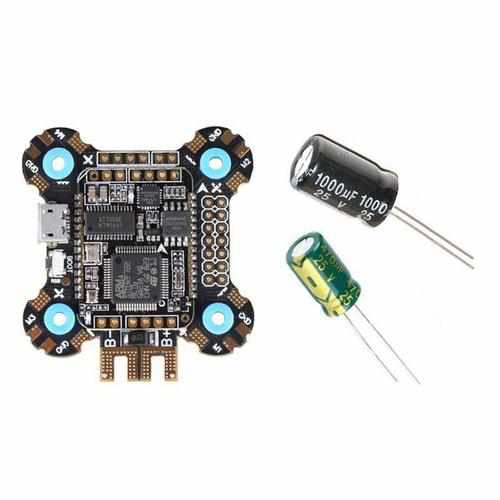

1x JHE F7 Flight Controller

4x silicon grommets M3

1x 25V/470uF Capacitor

1x 25V/1000uF Capacitor
