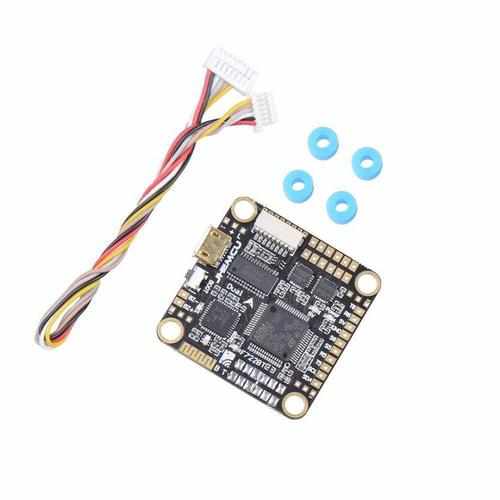

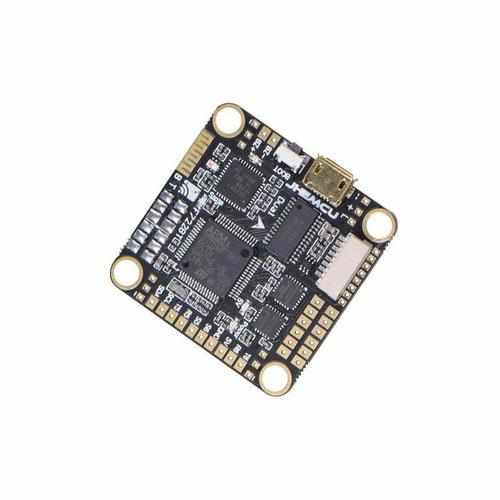

JHEMCU F7BT F7 ICM2689 MPU6000 2-6S Betaflight Flight Control Board

Specifications:

Model: JHEMCU F7BT Dual

Main control chip: STM32F722RET6 216MHz

Gyroscope: Dual ICM20689 + MPU6000 dual gyroscope access (SPI)

Barometer: BMP280

OSD chip: AT7456E

Black box: 16MB

LED programming: support

BB ring: Support

Input voltage: 2-6S

I2C interface: support

BEC-1: 5V / 2A (internal power supply, receiver, LED, BUZZER, etc.)

BEC-2: 8V / 3A (powered by camera and image transmission mode, it can be turned on and off through USER2)

Dual camera input: support (VIN1, VIN2 are video input interfaces, switch control by USER1, default VIN1 is input signal)

Serial control ports: six (UART1, UART2, UART3, UART4, UART5, UART6)

Bluetooth: support (port UART4, baud rate 115200, name JHEMCU)

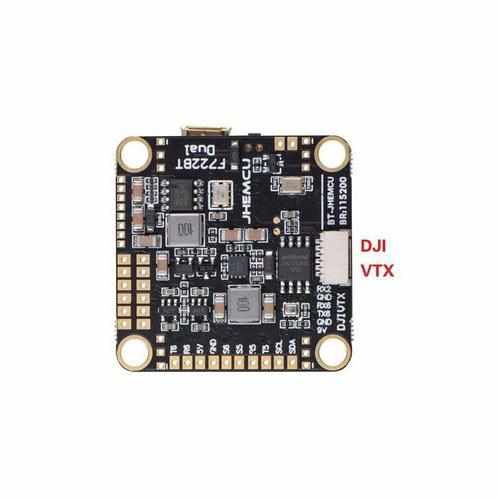

for DJI VTX: support sky-side reserved special socket, equipped with special plug line

Flight Control Firmware: Betaflight

Goal: JHEF7DUAL.HEX

Conversion between hole position and shock absorbing hole position: 30.5 * 30.5mm, φ4mm

Flight control size: 36 * 36mm

Weight: 7.3g

Features:

Solder&play camera remote control

No need capacitance&resistance, directly connect CC(from F405) to OSD pin(Cam) to realize it

Available for Foxeer Predator V2/Monster Pro/Arrow Pro

PDB built in, maxinum current is 4*50A

.Betaflight OSD MAX7456E,support 5*UART

Package included:

1 set Foxeer F405 F4 AIO Flight Controller
