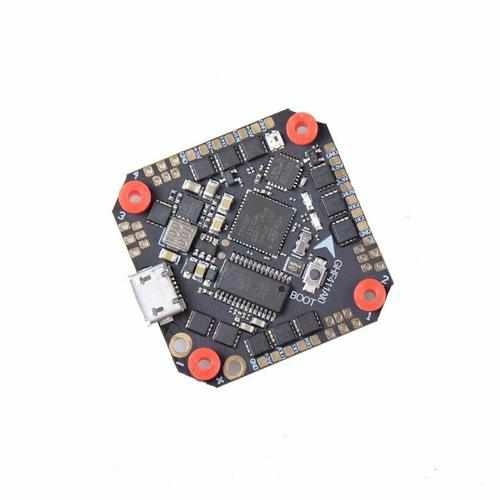

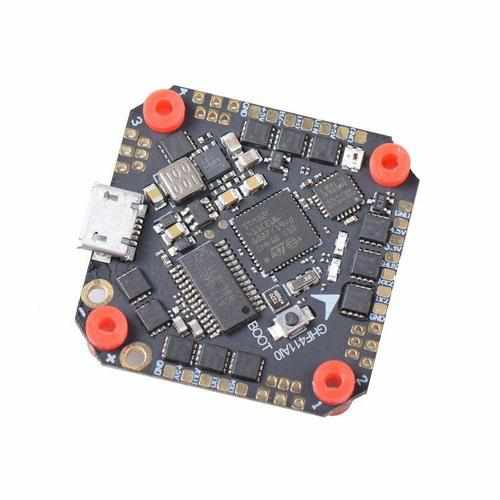

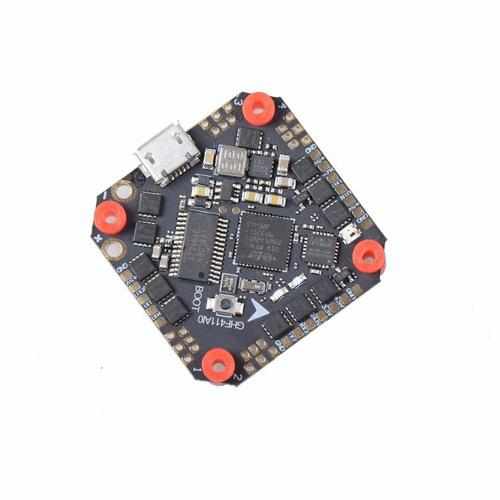

JHEMCU GH F411 AIO GHF411AIO Flight Controller

Product introduction

The board can handle 20A / 30A4 continuous current

With 4 motor pluggable pins, not pre-welded by default, best for your self-assembly needs

Compatible with 120X, 130X and 140X motors

The USB port is installed on the side, you have more installation possibilities while still accessing the USB port

All pads are on the edge of the flight controller, which is convenient for soldering

Double-sided motor pads. Pin pads and wire pads are built-in for motor connection

Integrated Betaflight MATEKF411 processor flight control, Betaflight OSD, F4 MCU and 20A / 30A ESC, support 2-4S battery

Flight control parameters

CPU: STM32F411CEU6 (100MHZ)

Six axes: MPU6000 (SPI connection)

Size: 32.5 * 32.5mm (25.5mm mounting hole)

Firmware version: Betaflight MATEKF411 (MK41)

OSD: Built-in BetaFlight OSD (OSD chip: AT7456E)

Receiver: Support Frsky XM / XM + receiver / Futaba receiver / Flysky receiver / TBS Crossfire receiver / DSMX receiver

Supports programmable LEDs such as WS2812

Built-in current sensor

Weight: 6.3g

ESC parameters

Support BLheli / BLHELI_S

Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600

Input voltage: 2S-4S Lipo

Continuous current: 20A / 30A (two models are optional)

Firmware: BLHELI_S

Motor connector: 1.25mm pin header

Package included:

1 x Toothpick GHF411AIO 2-4S Brushless Flight Controller

2 x Power cord + (30A with XT60, 20A with XT30)

4 x Shockproof rubber shock absorbers

4 x Motor pluggable pin base
