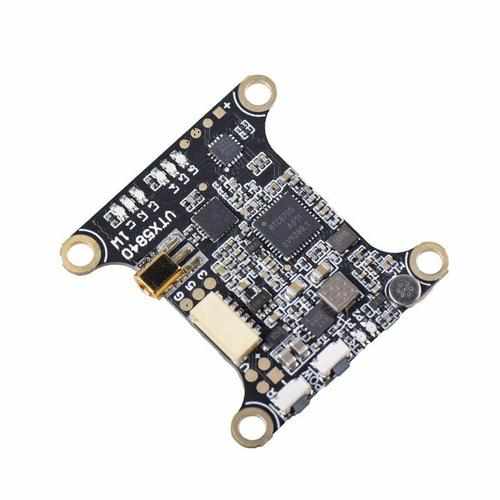

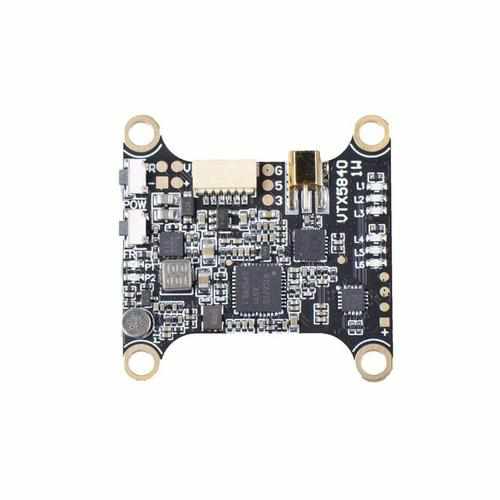

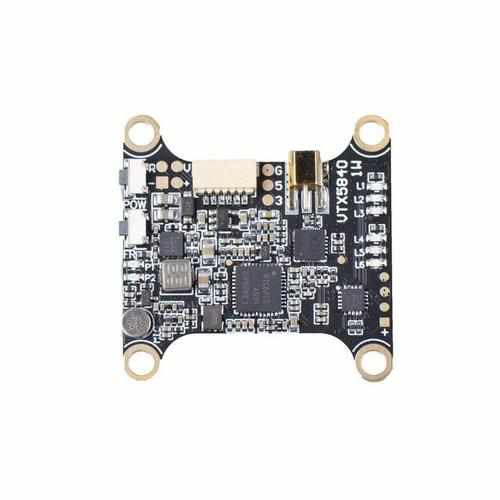

JHEMCU VTX5840 Switchable OSD FPV Transmitter VTX

Specification:

Brand Name: JHEMCU

Item Name: VTX5840 VTX

Input voltage: DC 7V-27V (2-6S)

Output voltage: DC 5V 2A

Power switching: 5th gear 25MW, 200MW, 400MW, 800MW, 1000MW

Signal channels: 40

Frequency point switch: manual key / IRC OSD (also supports)

Antenna interface: MMCX (distribution to SMA extension cable)

Dimensions: 36MM * 36MM Pitch: 30.5 * 30.5MM, M3

+ 5V GND VIDEO

Camera power supply (5V)

VIN GND

Input power supply (7-27V)

RXD

Flight controller sends IRCOSD serially

LED indication: L1-L6 channels, P1-P2 power

Frequency adjustment:

Manual adjustment

FR button Switches channels, 6 LEDs indicate channels. Default channel 5865

Features:

Fast 5-speed power switching, independent two red indicator lights, indicating the current transmit power 25/200/400/800 / 1000MW.

The frequency point uses 6 LEDs to display 40 channel values.

Support OSD tuning.

The antenna adopts MMCX to SMA extension cable, which reduces the PCB space.

Powerful power chip, input up to 27V, output 5V / 2A low ripple, small interference.

Do not install the antenna to power on, it will not burn the picture transmission.

Light weight: 4.1g (not including antenna and plug cable).

Package included:

1x VTX

1X 6P * 1.0MM plug cable

1X MMCX-SMA antenna adapter cable

1X MMCX antenna

1X Heat sink
