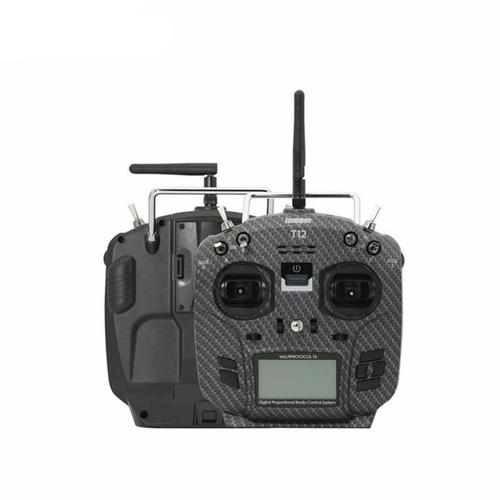

Jumper T12 Pro Open Source Multi-protocol Transmitter

Introduction:

The T12 Pro version does indeed support Crossfire and in CRSF mode with LUA script support
and most importantly WITHOUT any hardware modification for end users.

The T12 Pro platform is shipped with the JP4-in-1 Multi-protocol module.
such as the TBS Crossfire or any other compatible 2.4ghz JR Module, Analogue or Long Range UHF system,
the T12 Pro is ready to rock out with its socket out!

A standard LCD screen was used along with the T8SG V2 butter smooth V2 gimbals.

The T12 Pro comes standard with a neck strap and 18650 battery tray.
can also be powered with any LiPO or LiFE battery of a compatible size.
( which means that users do not need to source their own uncommon sized Li-ion round cells or a round cell charger.)

The T12 Pro, when paired with the Jumper JP4-in-1 offers seamless intergration between the OpenTX software and module
meaning protocals can be accessed and selected directly from the software GUI.
Crossfire users can setup their equipment via the OpenTX LUA scripts.

Jumper T12 Pro Radio Specification:

Radio MCU: STM32F205VET6 (512kb)

Size: 158x 150 x 58mm

Weight: 342g (without battery)

Working voltage: DC5-DC9V
(factory with 4 * AA battery box, 2s Lipo recommended, batteries not included)

Firmware: Open TX

Channels: up to 16 channel output

Display: 2.4 inch LCD display, 128* 64 resolution

Gimbal Type: HALL Sensor

JR/FrSKY compatible module bay on rear side

Upgrade method: USB online upgrade

Simulator mode: 3.5mm standard ppm output or USB HID

Voice support: YES

Package Included:

1x Jumper T12 Pro Radio Transmitter

1x DIY Module Bay

1x Antenna

1x 18650 Battery Box

1x Strap

1x USB Cable
