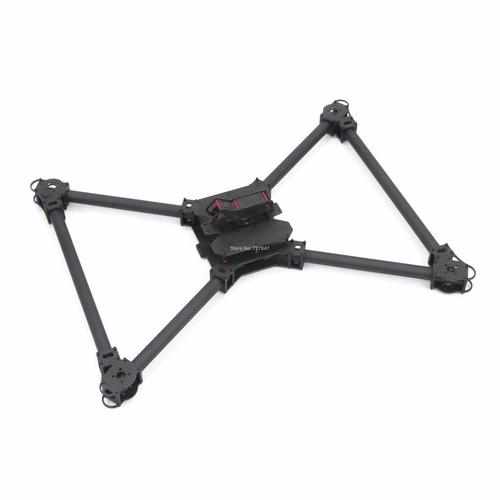

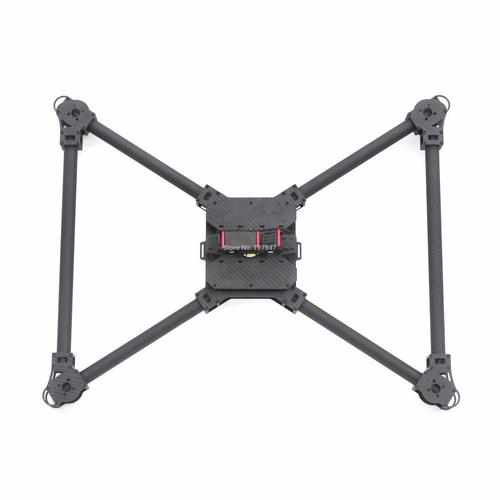

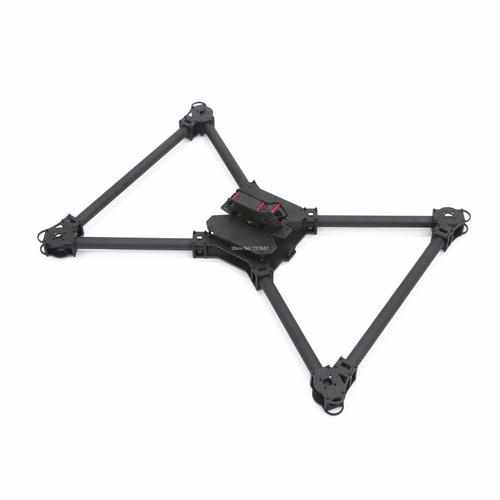

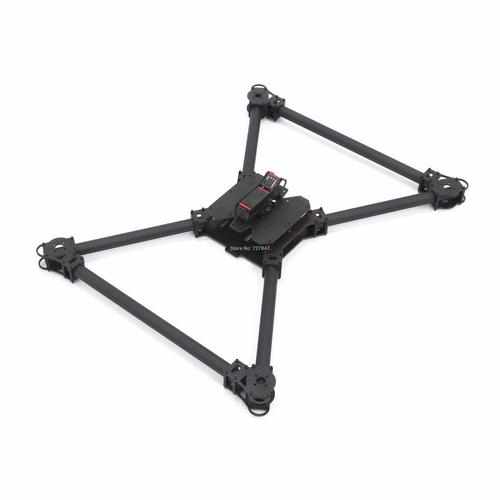

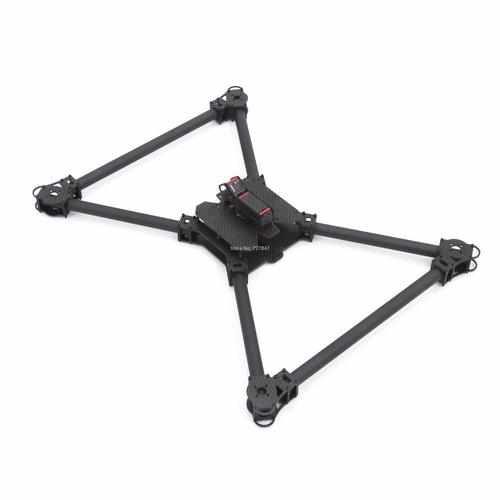

LX800 3k Quadcopter X Frame

Features:

Super tough arm brace version available

Industry leading frame rigidity

Industry leading lipo protection

Quick change lipo system

Centralized lipo mass design

Easy electronics access

Industry leading antivibration design

Provisions for crossfire gear

Optional canopy available (at a later date)

Specifications:

Weight for braceless version: 1200g (pre-production estimate)

Weight for braced version: 1600g (pre-production estimate)

Frame size: 800mm

Prop size: 17 inch maximum

Lipos supported: 6s - 12s

Supported FC: Standard 30.5mm x 30.5mm mounting or 20mm x 20mm micro FC

Supported VTX Size: Everything

Supported FPV Antenna: Everything

Supported receiver: Everything

Supported ESC size (ideal mounting location): 25mm wide x 53mm long x 5mm thick (max)

Supported ESC size (on the arms): 30mm wide x any length x any thickness

Supported PDB: Standard 30.5mm x 30.5mm mounting

HD camera mount options: Session or Standard Gopro

HD camera mount angle range: 20 - 50 degrees

Package Included

1 x LX800 800mm frame kit
