M8N GPS

Features:

- Using 32-bit processor, compatible with DJI NAZA LITE V1 V2 flight controller, incomparably superior than 8-bit processor.

- Please take notice of the arrow on GPS, which stands for the head of flyer.

- Similar calibration and usage with DJI GPS

- Coming with soft silicone gel cable 30cm; For softness, black rubber was wrapped on surface.

(Notice: black cable= GND, white cable=TX, yellow cable=RX, red cable=5V, 3.3-7.5V is ok)

- Metal foil label has been mounted on the bottom of GPS to reduce signal interference from other electronic equipments.

Operation Notice:

To calibrate the electronic compass is the first important thing when received your GPS.

Calibration Method:

Connect GPS to Flight controller, dial the model switch of radio control 7-10 times, LED light turns orange; Turn the flyer horizontally one circle, then the LED light turns green; Make the head of flyer downwards and turn it one circle, then the LED light flashed on.

Package including:

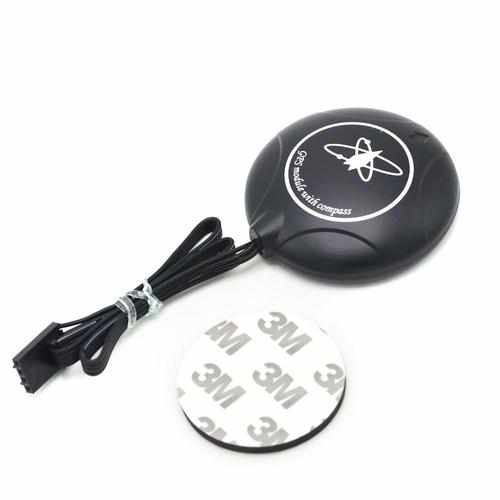

- 1 x NEO-M8N GPS Module with translucent Shell

(For DJI NAZA flight controller )

The dji naza controller do not included
