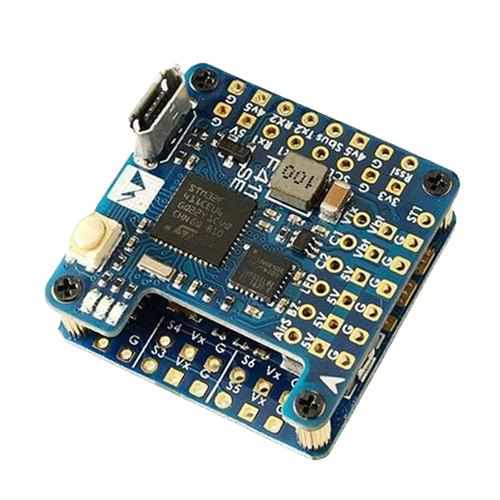

Matek Mateksys Wing F411 WSE Compact Flight Controller for iNAV

Features

Mateksys Wing F411-WSE Compact Flight Controller PDB 6~30V (2~6S LiPo) & BEC 5V output for iNAV FPV Racing Drones Controller

FC Specifications

MCU: 100MHz STM32F411CEU6

IMU: MPU6000 (SPI)

Baro: BMP280 (I2C)

OSD: AT7456E (SPI)

Blackbox: No

2x Uarts

2x Softserial-Tx

2x Motors, 4x Servos outputs

1x I2C

4x ADC (VBAT, Current, RSSI, AirSpeed)

3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)

Switchable Dual Camera Inputs

TR/SA VTX control: Yes

WS2812 Led control : Yes

Beeper output: Yes

RSSI: Yes

Voltage devider for Analog Airspeed sensor: Yes

FC Firmware

INAV Target: MATEKF411SE

PDB

Input voltage range: 6~30V (2~6S LiPo)

2x ESC power pads

Battery Voltage Sensor: 1:10 (Scale 1100)

Current Senor: 78A, 3.3V ADC, Scale 423

BEC 5V output

Designed for Flight controller, Receiver, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed module

Continuous current: 2 Amps, Max.3A(5seconds/minute)

BEC Vx output

Designed for Servos

Voltage adjustable, 5V Default, 6V option

Continuous current: 3.5 Amps, Max.5A(5seconds/minute)

BEC 3.3V output

Designed for Baro / Compass module/OLED and Spektrum RX

Linear Regulator

Continuous current: 200mA

Physical

Mounting: 24 x 24mm, Φ2mm

Dimensions: 28 x 28 x 14 mm

Weight: 8.5g

Item Package:

Matek Wing F411-WSE Compact Flight Controller x 1
