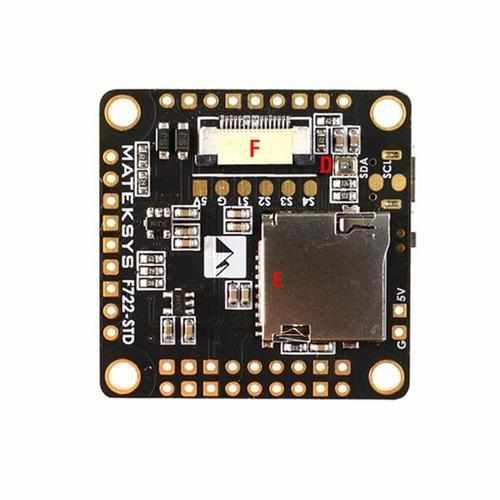

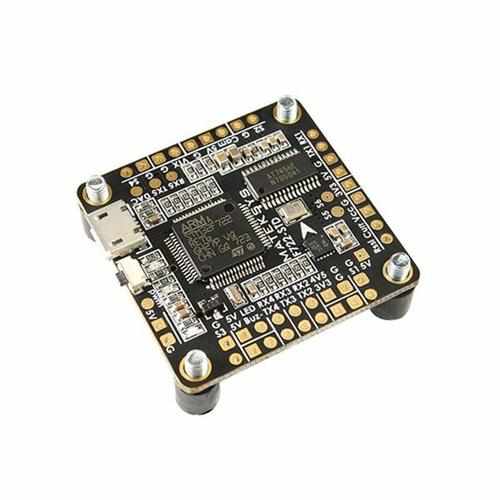

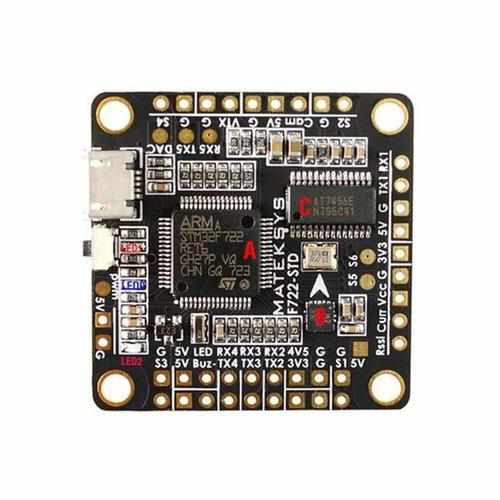

Matek Systems F722-STD F722 STD STM32F722 Flight Controller

Specification:

Brand name: Matek Systems

Item name: F722-STD flight controller

36x36mm PCB with 30.5mm mounting holes

Weight: 7g

MCU: 216MHz STM32F722RET6

IMU: 32K ICM20602 gyro/accelerometer (SPI)

Baro: BMP280 (I2C)

OSD: BetaFlight OSD w/ AT7456E chip

Blackbox: MicroSD card slot (SD/SDHC)

VCP, UART1, UART2, UART3, UART4, UART5

PPM/UART Shared: UART2-RX

Battery Voltage Sensor: 1:10

Current Sensor: No (FCHUB-6S, FCHUB-VTX option)

BEC 5V: No (FCHUB-6S, FCHUB-VTX option)

LDO 3.3V: Max.300mA

I2C1 SDA & SCL: Yes

Camera control: Yes

DAC: Yes

WS2812 Led Strip : Yes

Beeper : Yes

RSSI: Yes

Features:

3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)

7x PWM / DShot outputs without conflict

5x UARTs

1x Group of G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND

1x I2C1

4x pairs of corner pads for ESC Signal/GND connections (DSHOT compatible)

1x Side-press button for BOOT(DFU) mode

1x 16pin bottom mounted FFC Slot for FCHUB-6S or FCHUB-VTX connection

Package included:

1x F722-STD flight controller

2x 0.5mm*16Pin 5cm Flexible Flat Cable

4x M3 Anti-vibration Standoffs
