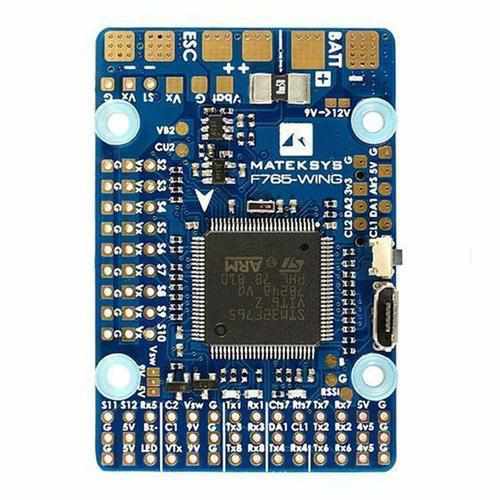

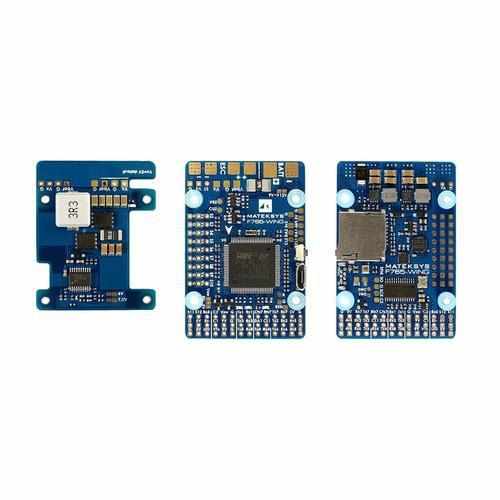

Mateksys Flight Controller F765-WING F765 Wing for FPV

FC Specifications

MCU: STM32F765VIT6, 216MHz , 512KB RAM, 2MB Flash

IMU: MPU6000 (SPI1) & ICM20602 (SPI3)

Baro: BMP280 (I2C2)

OSD: AT7456E (SPI2)

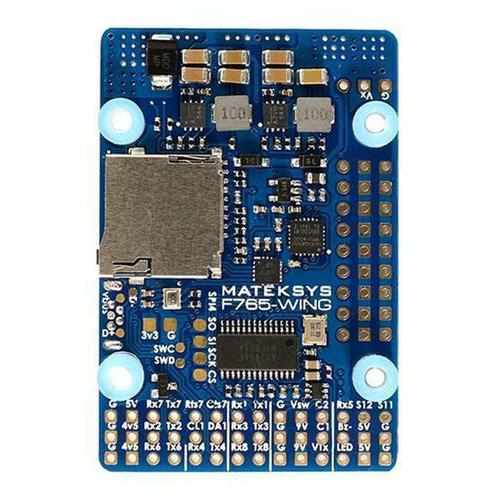

Blackbox: MicroSD card slot (SDIO)

7x Uarts (1,2,3,4,6,7,8) with built-in inversion.

1x Softserial1_Tx (INAV)

12x PWM outputs (S1~S10 support Dshot)

6x ADC (VBAT, Current, RSSI, Analog AirSpeed, VB2, CU2)

3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)

2x I2C

1x SPI4 breakout

Switchable Dual Camera Inputs

Switchable 5V/9V(12V) for Camera/VTX

High-precision Current Sense

ADC VB2 voltage divider: 1K:10K

ADC AirSpeed voltage divider: 10K:10K

TR/SA VTX control: Yes

WS2812 Led Strip : Yes

Beeper : Yes

RSSI: Yes

Analog Airspeed sensor: Yes

Digital Airspeed sensor: Yes

FC Firmware

INAV Target: MATEKF765

ArduPilot(ChiBiOS) Target: MATEKF765-WING

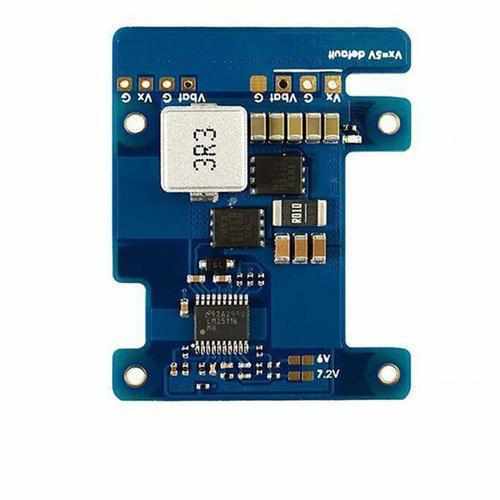

PDB

Input voltage range: 9~36V (3~6S LiPo) w/TVS protection

2x ESC power pads

Battery Voltage Sensor: 1:10 (Scale 1100 in INAV, BATT_VOLT_MULT 11.0 in ArduPilot)

Current Senor: 132A, 3.3V ADC (Scale 250 in INAV, 40 A/V in ArduPilot)

BEC 5V output

Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed

Continuous current: 2 Amps, Max.3A

BEC 9V /12V output

Designed for Video Transmitter, Camera, Gimbal ect.

Continuous current: 2 Amps, Max.3A

12V option with Jumper pad

BEC Vx output

Designed for Servos

Voltage adjustable, 5V Default, 6V or 7.2V via jumper

Continuous current: 8 Amps, Max.10A

BEC 3.3V output

Designed for Baro / Compass module and Spektrum RX

Linear Regulator

Continuous current: 200mA

Physical

Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm

Dimensions: 54 x 36 x 13 mm

Weight: 26g
