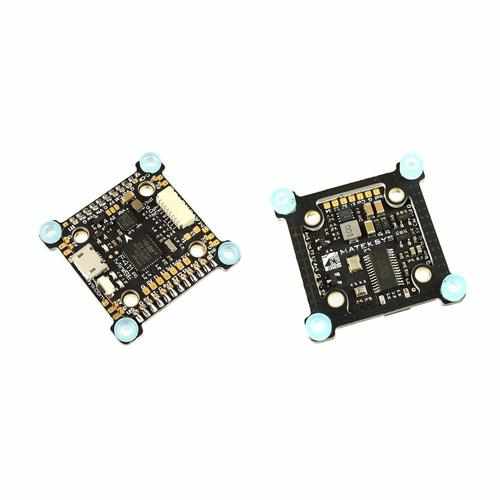

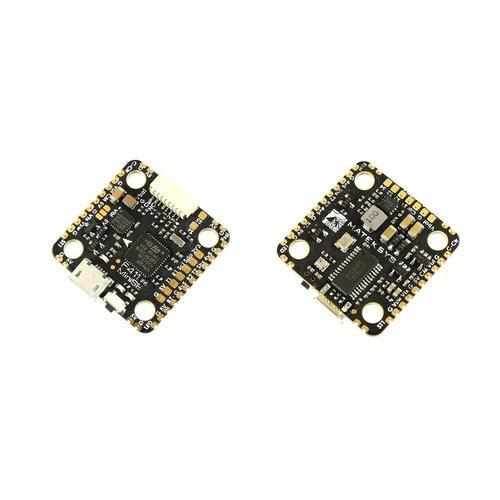

MATEKSYS Matek F411 Mini F411-MINI SE Flight Controller

Specification:

Flight Controller

Brand name: MATEKSYS

MCU: 100MHz STM32F411CEU6

IMU: MPU6000 (SPI)

Baro: BMP280 (I2C)

OSD: AT7456E (SPI)

Blackbox: No

2x Uarts

2x Softserial-Tx

6x PWM outputs (Dshot/Proshot/oneshot/multishot)

1x I2C

3x ADC (VBAT, Current, RSSI)

3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)

1x SH1.0_8pin connector (Vbat/G/Curr/R6/S1/S2/S3/S4)

TR/SA VTX control: Yes

Camera control: Yes

WS2812 Led control : Yes

Beeper output: Yes

RSSI: Yes

Filtered Vbat output power for VTX, Switchable via AUX (modes tab-user1)

Convertible 20mm to 30.5mm mounting

Power

Input: 6~36V (2~8S LiPo)

BEC: 5V 2A cont. (Max.3A)

LDO 3.3V: Max.200mA

Battery Voltage Sensor: 1:10 (Scale 110)

No Current Sensor built-in, supports external current sensor of PDB/4in1

FC Firmware

INAV Target: MATEKF411SE

BF unified Target: MATEKF411SE(MTKS)

Physical

Mounting

20 x 20mm/Φ3mm with Silicon Grommets

20 x 20mm/Φ2mm with Silicon & Brass Grommets

30.5 x 30.5mm/Φ3mm with Conversion Plate and Silicon Grommets

Dimensions: 28 x 28 mm

Weight: 5g

Including

1x F411-miniSE

1x 20mm to 30.5mm conversion plate

6x Silicon grommets M4 to M3

6x Brass grommets M3 to M2

1x SH1.0_8pin cable 5cm

2x SH1.0_8pin connectors
