MG90S / SG90 Servo

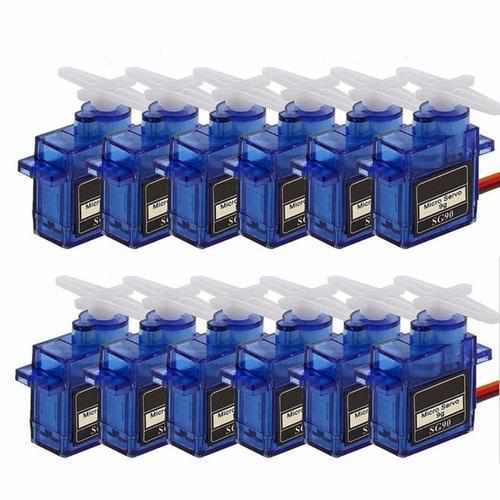

SG90
Description:
Item Name: SG90 Mini Analog Servo
Operating Speed (4.8V no load): 0.12sec/60 degrees
Stall torque: 1.2kg / 42.3oz(4.8V);1.6 kg / 56.4oz (6.0V)
operating voltage: 3.0-7.2V
Temperature range: -30~60
Dead band width: 7us
Item size: 3.2 x 3 x 1.2cm
Item weight: about 9g
Connector wire length: 24.5cm

Features:
High quality and high cost performance.
All Nylon Gear.
245mm connector wire.
Large stall torgue of 1.6 Kg.
Small size and light weight.
With 3 sets of servo horns and fittings.

MG90S
Description:
Item Name: MG90S servo
Weight: about 13.4g
Dimension: 22.8 x 12.2 x 28.5mm
Stall Torque: 1.8kg/cm(4.8V ),2.2kg/cm(6V)
Operating Speed: 0.1sec/60degree(4.8v), 0.08sec/60degree(6v)
Operating Voltage: 4.8-6.0V
Motor Type: coreless motor
Connector Wire Length : 175mm

Features:
Micro size
Great for truck, Boat, Racing Car, Helicopter and Airplane
