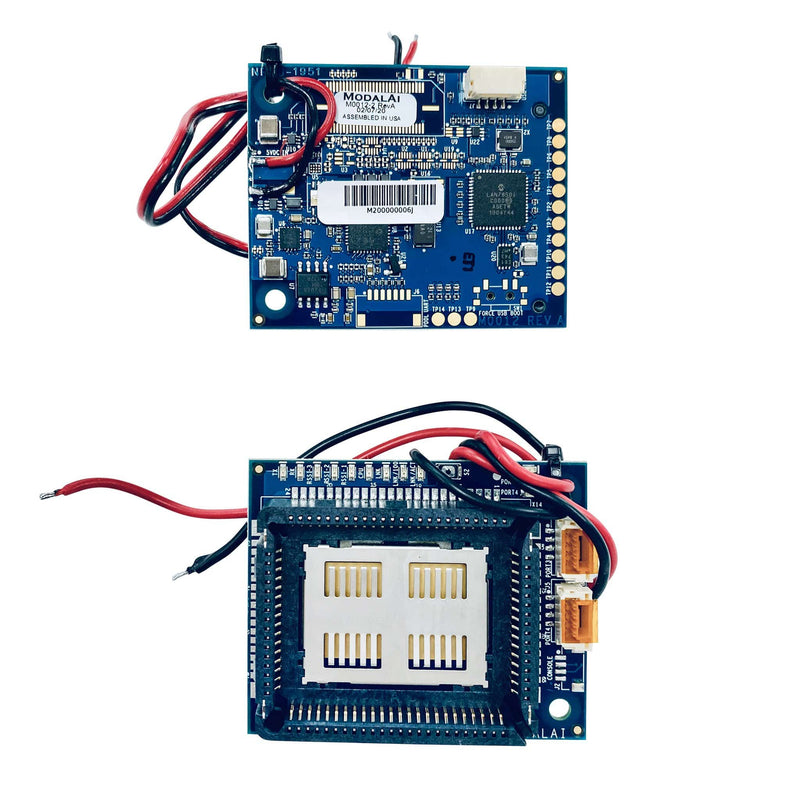

Microhard pDDL Carrier USB Dongle

$340.00

Long-range Point to Point Data-link for PCs Create long range, point to point links using pMDDL Microhard modems. This USB dongle allows one to plug in their Microhard module of choice, and connect it to their Linux PC or 2020 Android...

  • Availability: In Stock

Long-range Point to Point Data-link for PCs

Create long range, point to point links using pMDDL Microhard modems. This USB dongle allows one to plug in their Microhard module of choice, and connect it to their Linux PC or 2020 Android device using USB! Microhard modem to be purchased separately.

Seamlessly Connect Your Drone to Laptop with Microhard

Supported Microhard Modules

  • 1800MHz pDDL1800
  • 2.4GHz MIMO pMDDL2450 (Buy Here)
  • 2.3GHz MIMO pMDDL2350 (Buy Here)

Technical Details

    The dongle exposes a USB to Ethernet networking device and provides a hub to expand the computing device's USB access. The laptop or tablet communicates with the Microhard modem via a network interface.

    Datasheet

    Included In Kit

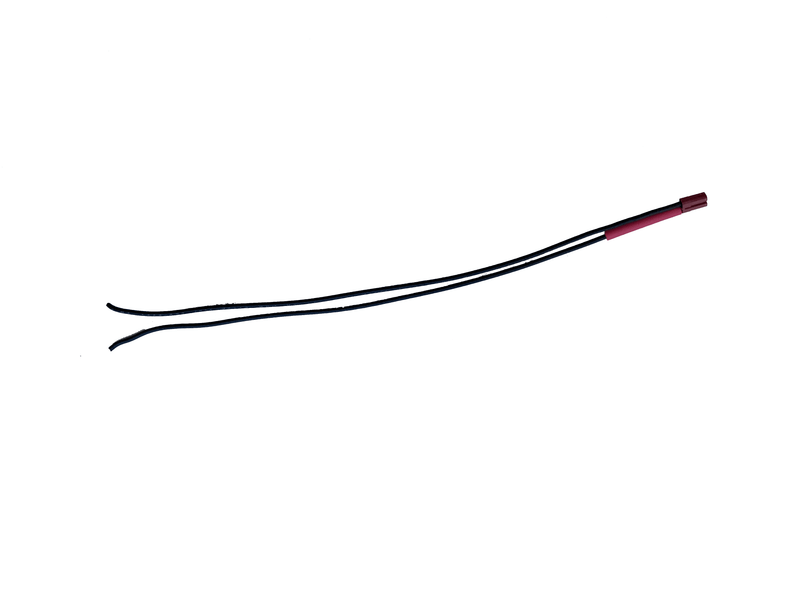

    • External power supply cable (MCBL-00017-1) used to connect to external 5VDC power supply

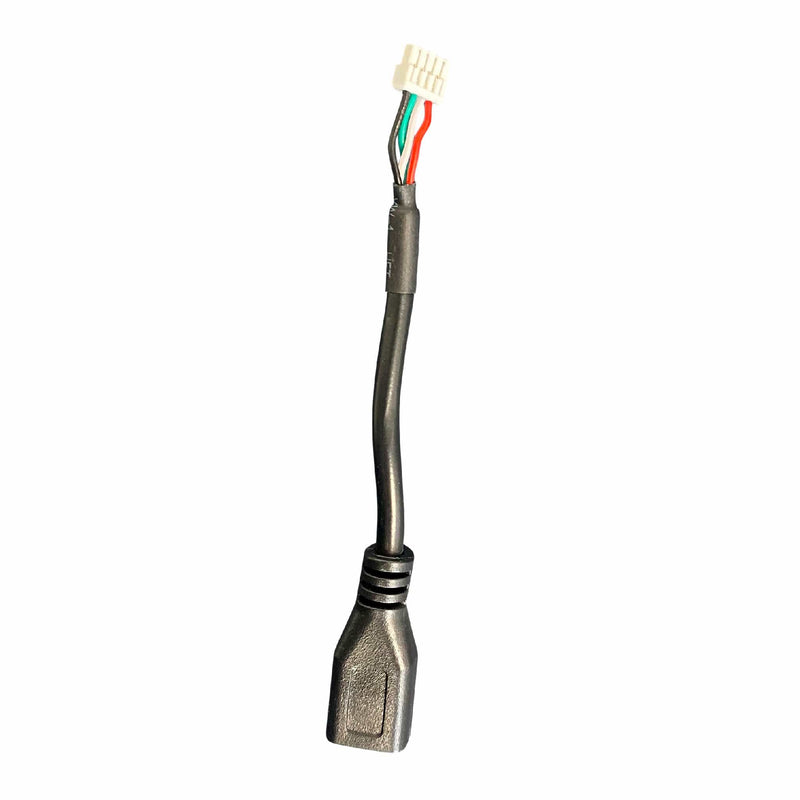

    • 4-pin JST to Micro USB Female cable (MCBL-00010-1) used to connect the unit to a host computer
    • QTY2 Antennas for convenience (Molex 47950-0011)

    Not Included In Kit

    Additionally, you can purchase cables to connect USB devices through the units hub feature

    • 4-pin JST to USB Type A female (here)
    • 4-pin JST to USB Micro Female (here)

    ModalAI Part Numbers

     MPN Description
    MDK-M0048-2-01

    Microhard pDDL Carrier USB Dongle, Dev Kit:

    • MCCA-M0048-2-T : Microhard Modem, Stand Alone, LAN7500, USB Hub
    • MRF-M0019-1 : Wi-Fi Antenna Kit
    • MCBL-00010-1 : JST-to-Micro-USB Female
    • MCBL-00017-1 : 5V/4A DC Cable
    • M10000058 : Microhard pDDL Socket Lid
