Mini Frsky 2.4G 4CH Mini Receiver

Specifications:

Item Name: 2.4G mini receiver

Channel: 4CH

Weight: 2.2g

Resolution: 1024

PWM Output: Yes

Operating Voltage: 3.5-10V

Current: 50MA

Antenna Length: 100mm

Dimension: 11mm*24.5mm

Control Range: >500M+

Compatibility: Compatible with frsky X9D (D8 Mode), XJT (D8 Mode), DJT, DFT, DHT

How To Bind:

* X9D: Select D8 mode, power on receiver press and hold BIND, then led light, select BIND on transmitter, receiver led off means binding is completed, transmitter exit binding mode, release BIND key and re-power.

* DJT, DFT: Hold the TX module button and power on transmitter, at this point the TX module get into binding mode. Power on receiver press and hold BIND, LED off when binding completed, release BIND key after transmitter restart, finally restar receiver.

* XJT: Dip switch select D8 mode, and then the same way as above.

Failsafe:

Currently only support the third channel failsafe, can not be defined by yourself, so keep the throttle channel in the third channel.

Package Included

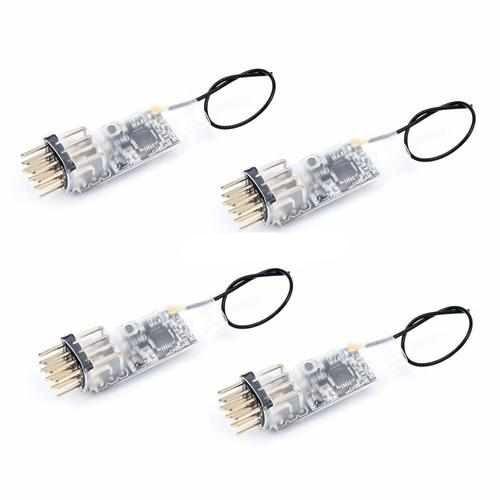

1pcs or 2pcs or 4pcs X 2.4G 4CH Mini Frsky D8 Compatible Receiver With PWM Output
