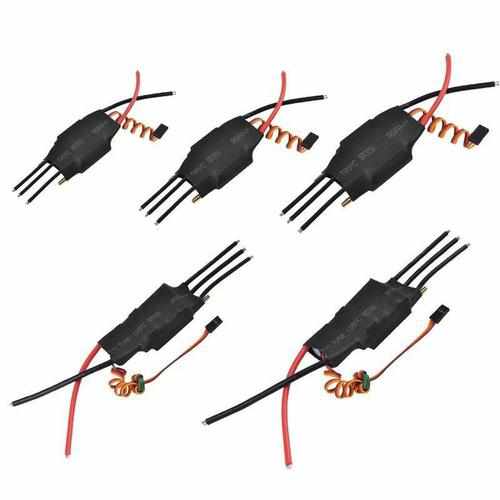

Mitoot 60A 80A 100A 125A 200A Brushless Water Cooling Electric Speed C

50A support 4S battery with 3A UBEC output with water-cooled one-way without back Dimensions: 53 * 40 * 16mm Weight 58 grams (including wire and water-cooled block)

70A support 6S battery with 5A UBEC output with water cooled one-way without back Dimensions: 75 * 41 * 18mm Weight 95 grams (including wire and water-cooled block)

125A support 6S battery with 5A UBEC output with water-cooled one-way without back Dimensions: 75 * 41 * 23mm Weight 120 grams (including wire and water-cooled block)

200A support 6S battery with 5A UBEC output with water cooled one-way without back Dimensions: 65 * 41 * 26mm Weight 140 grams (including wire and water-cooled block)

Marine two-way brushless ESC instructions

Basic Features:

Voltage range 4.8V-29.75V

4 --- 12NIMH 2-7LIPO

Featured high-performance FET

Single LIPO protection voltage 3.0V

Continuous working current A / 50A / 80A / 100A / 200A instant 200A / 320A / 500A / 650A

PWM frequency 8K / 16K / 32K

Supports brushless sensorless motors for the vast majority of models with 14-pole motor speeds up to 30,000 RPM.

Waterproof design

Additional features:

Brake strength optional

Support reversing function (no reversing / 25% power reversing / 50% power reversing optional)

Support Banpo start

Throttle position error prohibited start

Automatically learn the throttle trip

The error signal turns off the power

Receiver no signal alarm, and turn off the output.
