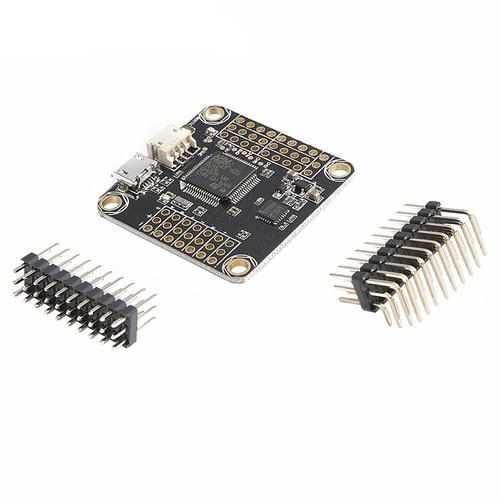

Mitoot Betaflight CC3D REVO F4 STM32F405 Flight Controller

Features:

Buzzer Port and LED strip Port

MPU6000 SPI Bus

128Mb Flash(16M Byte)

SBUS/PPM input (Pinheaders)

6PWM output (Pinheaders)

Only 36x36mm, mount holes 30.5x30.5mm

All through hole pin header Design -no Sh connectors

STM32 F405 MCU, Runs Race flight CC3D REVO firmware

Works Perfect with Race flight - preloaded with Race flight or Beta Flight 3.0

direct Lipo input :1.5A Built-in on board regulator - NO BEC needed.

Connect direct to a Lipo to power the board and Rx

RaceFlight or Betaflight support on an STM32 F3 with a SPI based MPU6000

gyro - low noise gyro will not force one to soft-mount the fc

Specifications:

Brand name: OCDAY

Color: Black

Size: 36x36x7mm

Package size: 130x87x12mm

Weight: 10g

Package weight: 14g

Package included:

1x F4 Flight Controller

2x Needles
