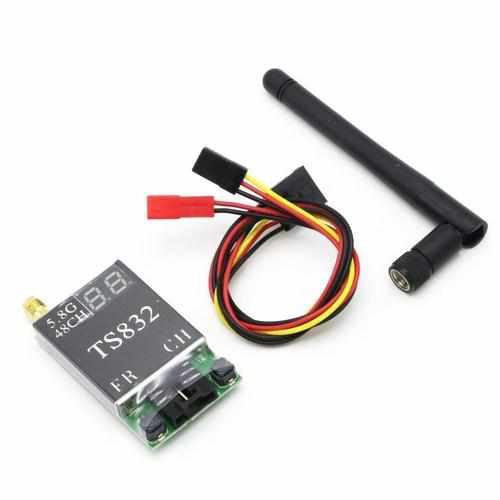

Mitoot TS832 FPV 5.8G 48CH 600mW 7.4-16V Wireless AV Transmitter

Features:

32 channels: Cover A, B, E bands and F band (Airwave band), 4 bands and all frequencies compactable;

Two switching buttons: CH button for frequencies channels switching, FR button for frequencies bands switching;

Two digits display: one for CH and the other for FR, real-time positioning which frequency band and which channel received;

Power off memory: Replay the very last frequency band and channel

Independent video and audio signal outputs

Specifications:

Video format supported: NTSC/PAL

Antenna connection: RP-SMA, jack (module side ) See connector type diagram

Power input: 7.4-16V (3S Lipo suggested)

Transmitting power: 600mA

Antenna gain: 2db

Working current: 220mA at 12V

Video bandwidth: 8M

Audio bandwidth : 6.5M

Weight: 22g

Dimension: 54x 32x 10mm(excluding antenna)
