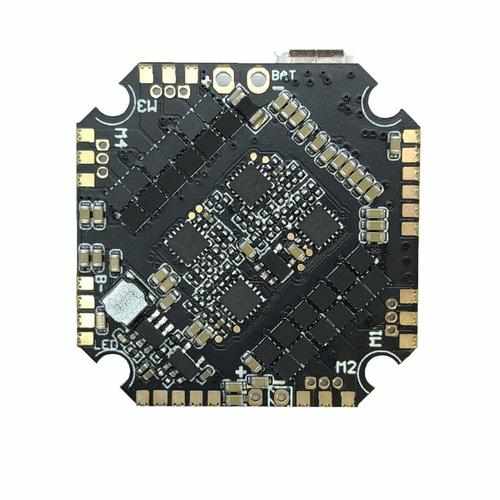

NameLessRC AIO412T F411 Flight Controller

Specification:

Brand name: NameLessRC

Item name: NameLessRC AIO412T Flight Controller

Processor: STM32F411

Sensor: MPU-6000 (connected by SPI)

Input Voltage: 2-4S Lipo or 2- 4S HV Lipo

Size: 33×33mm

Weight: 4.6g(W/O battery wire)

FC SPECIFICATIONS:

CPU: STM32F411CEU6 (100MHZ )

Six-Axis: MPU6000 (SPI connection)

Size:33×33mm board

Built-in 5V 2.5A BEC with LC filter

OSD: Built-in BetaFlight OSD

Receiver: Support DSM2/X receiver, Frsky XM/XM+ Receiver, Frsky R9M -Futaba Receiver, Flysky Receiver, TBS Crossfire Receiver

Support programmable LED

Built-in current sensor

Weight: 4.6g(W/O battery wire)

ESC SPECIFICATIONS:

Power supply: 2-4S LiPo/LiPo HV (7.4v/17.4v)

Continue current: 12A

Peak current: 15A

Firmware: BLHELI_S

Motor Connectors: 1.25mm header pins connector

Default protocol: DSHOT600

Features:

The largest support 4S Lipo HV battery, with Current meter

F411 Flight Controller, BEC 5V 2.5A

MPU6000 Gyro

Include Buzzer pad

Invert and non-invert SBUS port

Light design

Package Included:

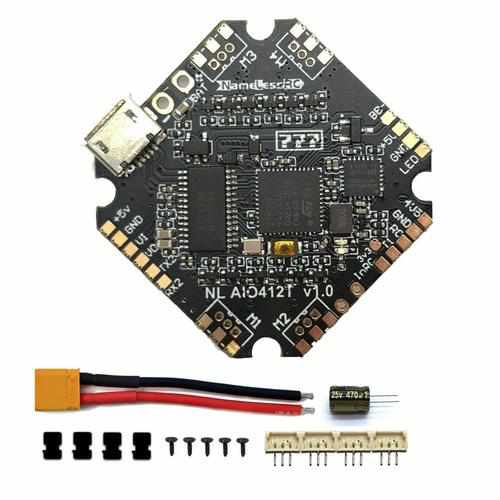

1 X NameLessRC AIO412T Flight Controller
