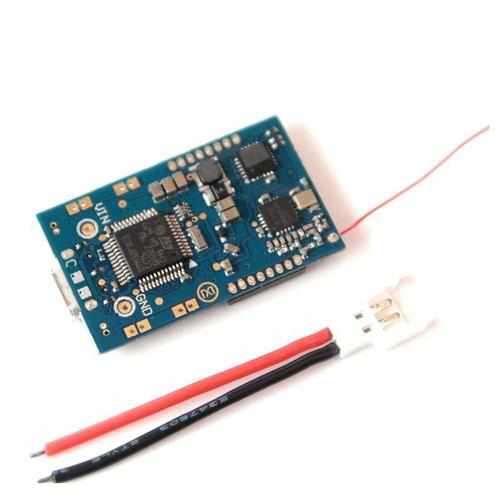

Oversky F3 EVO Micro Brushed Flight Control Board

Specifications:

Brand Name: Oversky

Item Name: Flight Control Board

Size: 20.0*33.5*6.0mm (Not Including the USB protruding part)

Weight: 2.5g

Brushed ESC: continuous working current is 4.2A, max current is 6A(5S);

 Features:

STM32F303CCT6 main controller;

MPU6500 sensor (SPI way)

6 optional built-in receivers;

Onboard 5V/1000mA DCDC booster circuit;

4 built-in brushed ESCs (each brushed ESC can support current up to 6A);

No need soldering for installing VTX-25MW module or VTX-25MW & OSD module (note: analog VTX is 40CH)

Every built-in receiver on the board outputs receiver signal in the same 8CH PPM format and order, the channel number depends on customer's transmitter;

Customer can set up the working frequency of VTX according to his own request through transmitter;
 
 Binding Operation:

Two ways for binding operation: the first way is to long press the button for 2 seconds and enters binding mode; the second way is

timeout binding mode.

The built-in receiver for entering binding mode in the first way: 3=> Futta-ba SFHSS compatible receiver;

Note: LED light A flashes quickly indicates entering binding mode, solid LED light A indicates signal is received and stable.

 Description:

Oversky F3 brushed flight control board based on F3 EVO hardware, supports CleanFlight and BetaFlight firmware.

This board comes with motor connectors (4 pcs of 1.25mm 2P) soldered and power connector soldered.

There are 3 kinds of hardware for its built-in compatible receiver: A---CYRF6936, B---CC2500,C---A7105.

MX VTX 25MW module (video transmitter) can be plugged and installed on Scisky F3 brushed flight control board directly, no soldering is needed, and also you can plug and play MX VTX-25MW & OSD and the analog camera, please check the following picture for reference:
