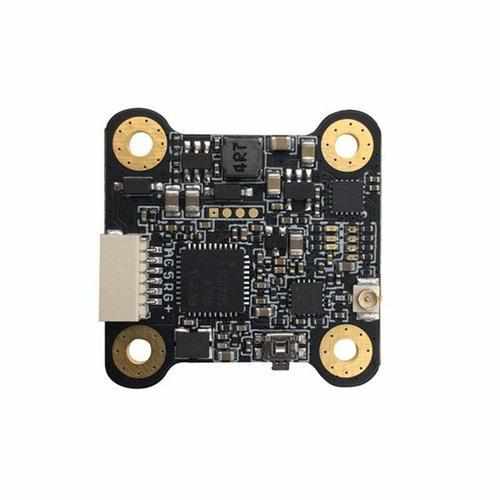

PandaRC Mini5804 5.8G 48CH 0/25/100/200mW Switchable FPV Transmitter

$80.00

Specification: Brand name: PandaRC Item name: Mini5804 FPV Transmitter Power: 0mW/25mW/100mW/200mW Channel: 48CH Format: NTSC /PAL Voltage: 7V~24V, +12V/170mA@200mW Distance: ≥0.5km@25mW, ≥0.8km@100mW, ≥1km@200mW Size : 27mm×27mm×4.5mm Holes: 20mm×20mm(4-M2) Weight(without antenna): ≤3.5g Frequency and power controll: Support Betaflight OSD adjust power...

  • Availability: In Stock

Specification:

Brand name: PandaRC

Item name: Mini5804 FPV Transmitter

Power: 0mW/25mW/100mW/200mW

Channel: 48CH

Format: NTSC /PAL

Voltage: 7V~24V, +12V/170mA@200mW

Distance: ≥0.5km@25mW, ≥0.8km@100mW, ≥1km@200mW

Size : 27mm×27mm×4.5mm

Holes: 20mm×20mm(4-M2)

Weight(without antenna): ≤3.5g

Frequency and power controll:

Support Betaflight OSD adjust power and frequency. PIT MODE is 0 mW for Close-up bind.

Key control: frquency : short press once time to change channel CH(CH1-CH8)

Power: Long press 10s to inter power switchable mode. The LED light as follow.

And short press to change the 25/100/200mW.

Package Included:

1 x Mini5804 FPV Transmitter
