PandaRC VT5804 X1 VT5804 Q1 5.8G 16CH Video Transmitter Module

$196.00

Specification: Radio Frequency Output Impedance:50 Ohm output power : 28.5-29.5dBm input voltage : 6-26V Video Bandwidth:8MHZ Audio carrier frequency:6.5MHZ Video input level:0.8-1.2 VP-P Audio input level:0.5-2.0 VP-P Audio input impedance:10K Ohm Antenna interface : MMCX weight : (Q1/X1) 9g Size...

  • Availability: In Stock
Type

Specification:

Radio Frequency Output Impedance:50 Ohm

output power : 28.5-29.5dBm

input voltage : 6-26V

Video Bandwidth:8MHZ

Audio carrier frequency:6.5MHZ

Video input level:0.8-1.2 VP-P

Audio input level:0.5-2.0 VP-P

Audio input impedance:10K Ohm

Antenna interface : MMCX

weight : (Q1/X1) 9g

Size : VT5804-X1 36*36*5.5MM

VT5804-Q1 34*24*5.5MM

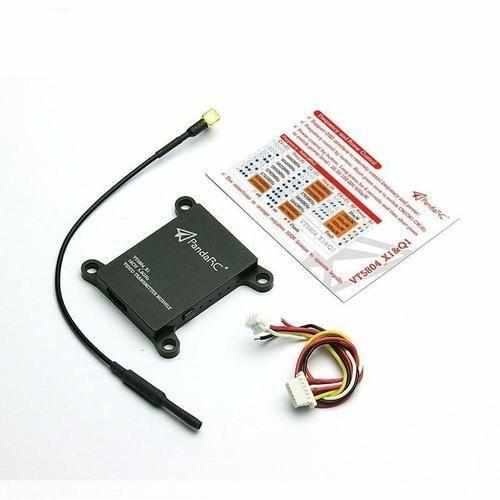

Package including:

1 * VT5804 X1(X1 or Q1)

1 * Connection Cable

1 * MMCX to SMA-Female Cable

1 * Frequency table
