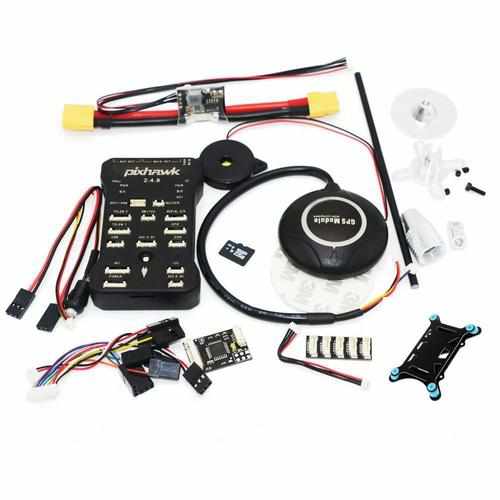

Pixhawk PIX PX4 Flight Controller

BFKJ802+BFKJ803-PIX+OEM222+THA001501+UL20200

up power supply and failure backup controller, the main controller can be safely switched to backup control;

Provide redundant power input and fault transfer function;

14* PWM/ actuator output;

Bus interface (UART, I2C, SPI, CAN);

Provide automatic and manual mode;

Color LED lamp;

Multi tone buzzer interface;

Micro SD to record flight data;

Specification:

The board integrates with PX4FMU+PX4IO

Pixhawk is with new 32 bit chip and sensor technology

Processor:

32 bit 2M flash memory STM32F427 Cortex M4, with hardware floating point processing unit

Main frequency: 256K, 168MHZ RAM

32 bit STM32F103 backup co processor

Sensor:

L3GD20 3 axis digital 16 bit gyroscope

LSM303D 3 axis 14 bit accelerometer /magnetometer

MPU6000 6 axis accelerometer / magnetometer

MS5611 high precision barometer

Interface:

5* UART, 1*compatible high voltage, 2*hardware flow control

2*CAN

Spektrum DSM/DSM2/DSM-X satellite receiver compatible input

Futaba SBUS compatible input and output

PPM signal input

RSSI (PWM or voltage) input

I2C

SPI

3.3 and 6.6VADC input

External USB MICRO interface

Color:Black

Size: 50x81x16mm/2.0x3.2x0.6 in

Package size: 110x145x18mm/4.3x5.7x0.7 in

Weight: 48g

Package weight: 52g
