Pixhawk PX4 Autopilot PIX Flight Control

Features:

Advanced 32 bit CortexM4 ARM high performance processor, can run RTOS NuttX real time operating system;

14* PWM/ actuator output;

Bus interface (UART, I2C, SPI, CAN);

Integrated backup power supply and failure backup controller, the main controller can be safely switched to backup control;

Provide automatic and manual mode;

Provide redundant power input and fault transfer function;

Color LED lamp;

Multi tone buzzer interface;

Micro SD to record flight data;

Processor:

32 bit 2M flash memory STM32F427 Cortex M4, with hardware floating point processing unit

Main frequency: 256K, 168MHZ RAM

32 bit STM32F103 backup co processor

Sensor:

L3GD20 3 axis digital 16 bit gyroscope

LSM303D 3 axis 14 bit accelerometer /magnetometer

MPU6000 6 axis accelerometer / magnetometer

MS5611 high precision barometer

Interface:

5* UART, 1*compatible high voltage, 2*hardware flow control

2* CAN

DSM/DSM2/DSM-X satellite receiver compatible input

Futaba SBUS compatible input and output

PPM signal input

RSSI (PWM or voltage) input

I2C

SPI

3.3 and 6.6VADC input

External USB MICRO interface

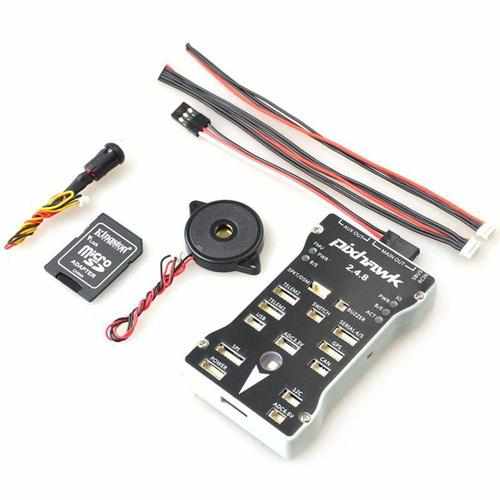

Package included:

1 x 2.4.8 Pixhawk main control

1 x Flight control shell

1 x Safety switch

1 x Buzzer

1 x 6pin to 6pin line

1 x 4Pin to 4Pin line

1 x 3pin DuPont line

1 x 1G SD Card
